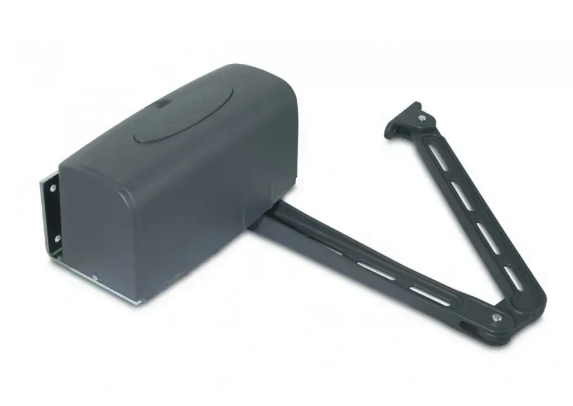

GIBIDI 30510 ART 5000 230V Articulated Arm Operator For Gates

GIBIDI 30510 ART 5000 230V Articulated Arm Operator For Gates

MT Code
GBD_30510
Manufacturer Code
30510
Brand
GIBIDI
extra sconto di benvenuto
Description
With window opening and closing, 230Vac and

24Vdc electromechanical
operators with an articulated arm, dedicated to medium-sized and weighted swing gates. Suitable for both residential and intensive use.

EASY TO INSTALL
Thanks to the special fixing plate, it is fixed quickly without the need for welding, integrated and pre-wired windows.

QUIET AND FAST
Extremely quiet thanks to the use of selected materials and careful gear finishes. In the 24Vdc version, it is possible to adjust the opening speed.

TECHNOLOGICAL AND SAFE
ART is made entirely of steel and bronze-aluminum alloy, it is robust and reliable over time. Possibility to use the special wall selector with remote engine release
.

A COMPLETE AND RELIABLE RANGE
Thanks to the dedicated accessories, it is possible to install ART even in the presence of large pillars and obtain door openings of up to 130°
.

Use: RESIDENTIAL
Frequency of use: 30% Motor power supply:
230 Vac - 50/60 Hz
Absorbed power: 200W Degree of protection:
IP53 Shaft rotation speed:
7.8°/s Max. thrust force:
250 Nm Force adjustment: ELECTRONIC Speed adjustment: ELECTRONIC ** Max. leaf length: 3 m
*
Operating temperature:
-20°C +60°C Encoder/end stroke:
ENCODER/end stroke - A/C Lubrication: GREASE
GBD WH-01 Weight
operator: 11.1 Kg
Data Sheet
Codice Produttore 30510
Brand GIBIDI
