ELSNER 10115 Arexa 230 V window control

ELSNER 10115 Arexa 230V Window Control

The Elsner Elektronik Arexa 230 V window control is designed to achieve controlled ventilation in environments such as greenhouses and conservatories, ensuring optimal air exchange even in the absence of people.

General Characteristics

The device has a plastic enclosure, partially lacquered, with an opaque white finish similar to RAL 9016 Traffic White. The dimensions of the operating unit are 103mm x 98mm x 28mm, with a total weight of about 170 grams, including batteries.

Protection and Operating Environments

• Protection class: II
• Degree of protection: IP20
• Ambient operating temperature: 0°C + 45°C
• Relative humidity (non-condensing): 5% - 80%
• Storage temperature: -10°C + 50°C
• Overvoltage category: III
• Pollution degree: 2

Feeding

The window control is powered by 2 AA/Mignon/LR6 batteries, with a voltage of 1.5 V or 1.2 V for rechargeable batteries.

Functionality

The device integrates sensors for measuring ambient temperature (0°C + 50°C) and includes a weather station to detect outside temperature, wind speed (0 - 35 m/s) and precipitation. The weather station can be mounted on a wall or pole, with an IP44 degree of protection and dimensions of 96mm x 77mm x 118mm.

accessories

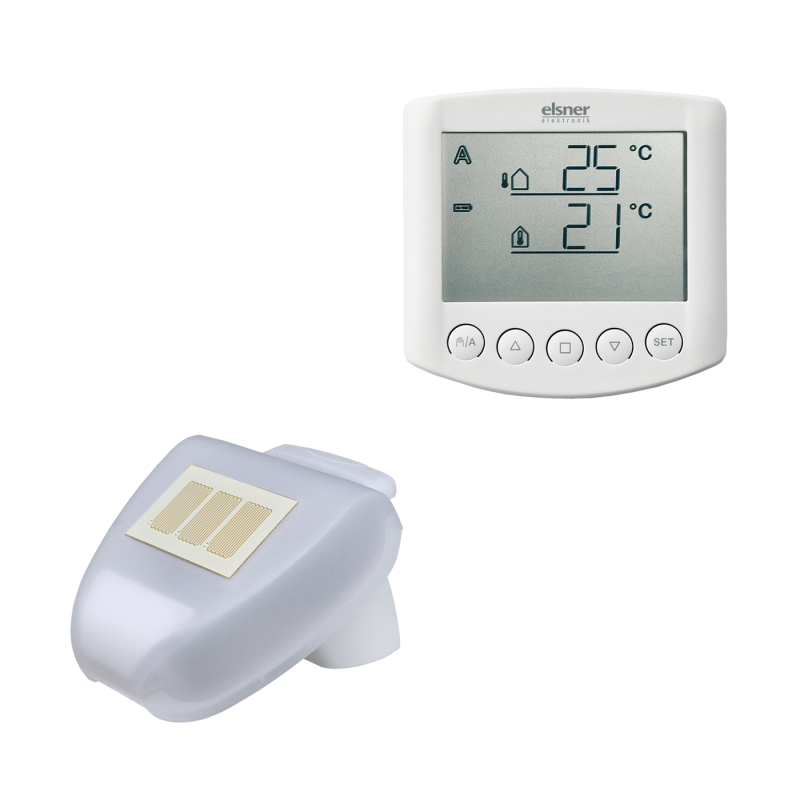

• Control unit with integrated keys for displaying weather data, alarm messages and operating modes.
• Weather station with combined support for wall or pole mounting.

The Arexa 230 V window control is ideal for ensuring efficient and controlled ventilation, adapting to the specific needs of the environments in which it is installed.
