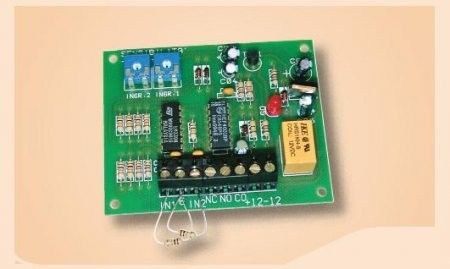

VIMO CSAI002 Analysis sheet for single-input inertial sensors

CSAI002 analysis circuit for inertial contacts, generally at a balanced input line. Input lines - terminated type - reveal the short circuit and their continuous opening. The sensitivity to the pulses generated by the contacts connected to the inputs is adjustable via trimmer. LED relay indication in alarm. The alarm relay is programmable Normally Attracted or Normally Released.
