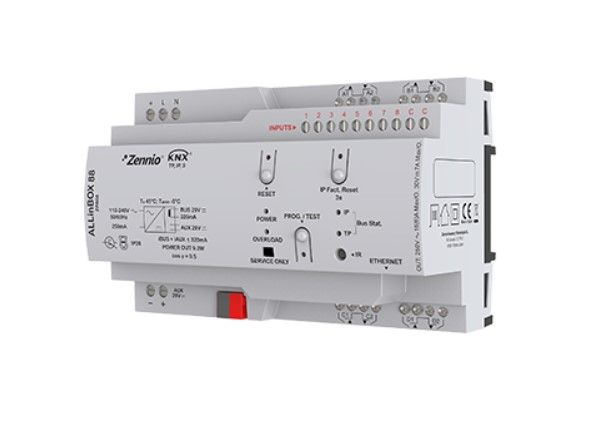

ZENNIO ZPR88 AllInbox 88 - Multifunctional device with power supply, KNX-IP interface, 8 outputs, 8 inputs and logic module

The ZENNIO ZPR88 multifunctional device is an ideal starting point for most projects that require control and monitoring functionality. This device integrates a number of essential components into a single compact module.

Key Features

• 320 mA KNX power supply
• KNX-IP interface
• 4 independent thermostats
• Logic module
• 8 analog/digital inputs
• 8 relay outputs (16 A C-Load)

Configurations and Uses

The ZPR88 device offers multiple configuration options, allowing the outputs to be used as channels for shutters or as individual outputs. In addition, it can be configured as a controller for 2- or 4-tube fan coils.

Inputs and Outputs

• 8 configurable analog/digital inputs for various types of sensors and buttons
• 8 relay outputs (16 A C-Load) for controlling electrical loads

Integration and Compatibility

The device is compatible with the ETS5/ETS6 software and requires an update to the latest version to be successfully imported.

Dimensions and Installation

The device only takes up 8 DIN rail units, making it ideal for installations in tight spaces.
