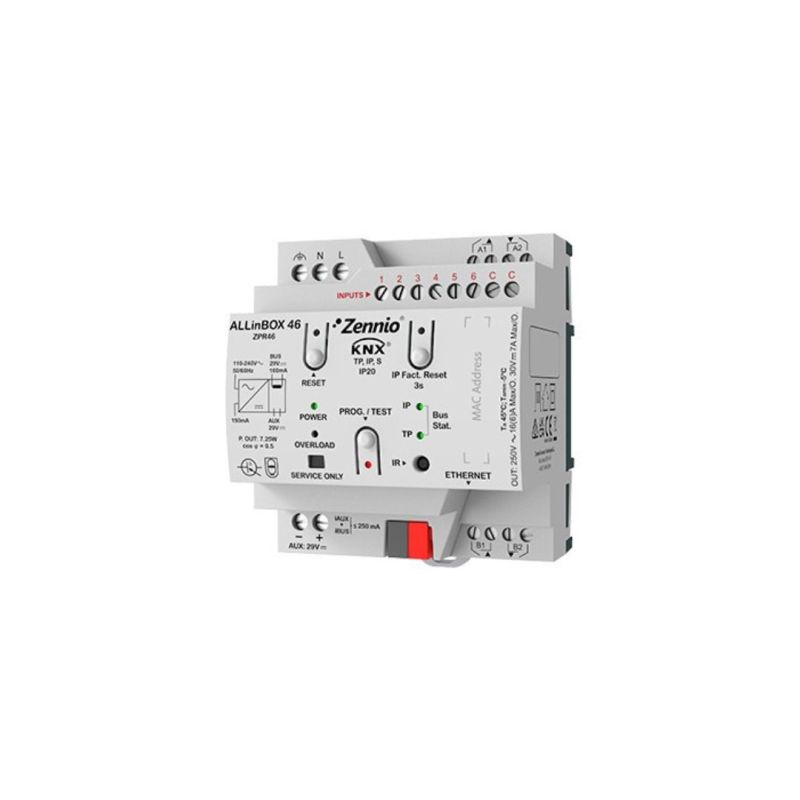

ZENNIO ZPR46 AllInbox 46 - Multifunctional device with power supply, KNX-IP interface, 4 outputs, 6 inputs and logic module

The ZENNIO ZPR46 device, known as AllInbox 46, is a multifunctional device designed to meet the most diverse needs in KNX-based home and industrial automation systems.

Key Features

• 160 mA KNX power supply with 29 VDC SELV auxiliary output
• 110-240 VAC, 50/60 Hz main power supply
• Power generation for the KNX system with LED indicator
• Overcurrent and overvoltage protection
• Reset button and overload status LED
• Support for the KNXnet/IP protocol with up to 5 connections
• Maximum APDU length of 254 bytes
• 10/100 BaseT Ethernet interface with RJ45 socket

Exits and Income

• 4 configurable outputs: curtain channels (up to 2), individual outputs (up to 4) and 2-tube fan coil control (up to 1)
• Outputs suitable for capacitive loads, maximum 140 µF
• 6 analog/digital inputs
• Climate control for up to 4 rooms

Logical and Control Functionality

• 20 logical functions
• Clock with NTP support
• Output timing function
• Manual operation of outputs via remote control

Technical Specifications

• Typical supply voltage: 29 VDC SELV (with KNX coil)
• Nominal maximum current (IBUS): 160 mA
• Connection type: TP1 bus connector for 0.8 mm rigid cable
• Operating temperature: -5.. +45 °C
• Storage temperature: -20.. +55 °C
• Operating humidity: 5.. 95%
• Storage humidity: 5.. 95%
• Protection class/Overvoltage category: I/III (4000 V)
• Type of operation: Continuous operation
• Degree of protection/Degree of pollution: IP20/2 (clean environment)

The AllInbox 46 device is designed to be mounted inside electrical panels with DIN support (IEC 60715), offering a complete and integrated solution for managing KNX systems.
