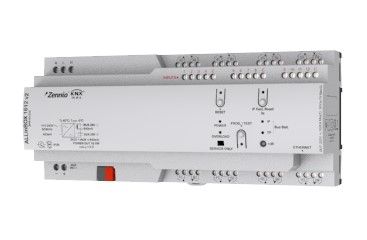

ZENNIO ZPR1612v2 AllInbox 1612 v2 - Multifunctional device with power supply, KNX-IP interface, 16 outputs, 12 inputs and logic module

The ZENNIO ZPR1612v2 multifunctional device is designed to integrate all the functionality necessary for plant control and monitoring, all in just 12 DIN modules.

Key Features

This device combines several essential features in a single product:

• 640 mA KNX power supply
• KNX-IP interface
• Climate controller with up to 4 independent thermostats
• Logic module
• 12 analog/digital inputs
• 16 relay outputs (16 A C-Load)

Multiple Configurations

The outputs can be configured in a variety of ways, such as individual outputs, channels for dampers, or as a controller for 2- or 4-tube fan coils.

Inputs and Outputs

The 12 analog/digital inputs allow flexible integration with various types of sensors and devices, while the 16 relay outputs offer a wide range of possibilities for controlling electrical loads.

Integration with ETS

The device is compatible with the ETS5 and ETS6 application programs, ensuring easy integration and configuration within the KNX system.

Important Note

Make sure to update ETS5/ETS6 to the latest version in order to import the product correctly.
