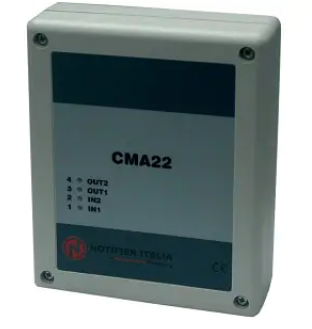

NOTIFIER CMA22 MODULE 2 INPUTS 2 OUTPUTS

Addressable module with 2 inputs and 2 outputs. The entrance is controlled on a guarded line. The second output can be controlled or with potential-free exchange contact. the first with contact only. The choice of the output type is obtained by selecting two dip-switches. The form, using four consecutive addresses, is addressed by means of rotary selectors numbered from 01 to 99. This is equipped with four green and red LEDs that will give indications on the status of the module. CPR certificate in accordance with EN 54-18. 15-32 Vcc power supply. Rest current of 620 microA and 860 microA with active LED. Operating temperature from 0°C to +50°C. Relative humidity up to 93 percent.
