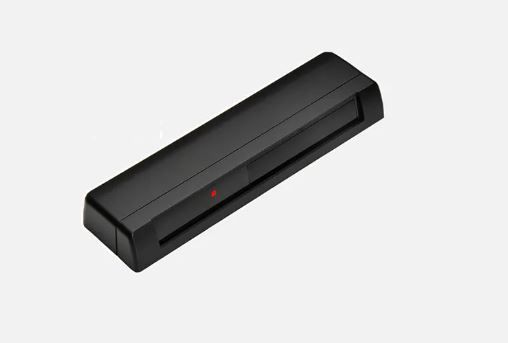

DOMOTIME IDH4II Active infrared sensor for industrial doors with acquisition of the direction of origin

Active infrared sensor for industrial doors with acquisition of the direction of origin and detection of static presence with “Door Learn” technology.

Active infrared industrial door sensor with static presence detection (security function). The security function prevents the door from closing automatically if the sensor detects a presence in the working field of the door itself. The sensor uses the “Door Learn” technology that allows you to simultaneously control the pedestrian safety zones both in front of and inside the automatic industrial doors. It can be installed at a height of up to 4.7 m for a 6 m x 4 m detection range. The 6 m x 4 m detection range ensures immediate detection of rapidly approaching vehicles on all types of industrial doors, and has an IP54 degree of protection. Cross-traffic filtering and unidirectional sensing technology reduce unintentional door openings. The 2-zone infrared security barrier, oriented directly in front of the industrial door, protects pedestrians from the dangers caused by the movement of the doors.
