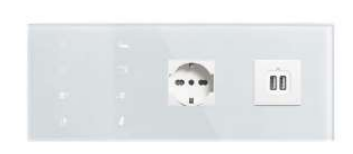

EELECTRON 9025GL10C01-B2R KNX PLATES CUSTOM BEDSIDE WHITE PLATE CUSTOM BEDSIDE PANEL — 2 SOCKETS — RIGHT SIDE WHITE

EELECTRON 9025GL10C01-B2R Product Description

The EELECTRON 9025GL10C01-B2R bedside custom plate is an innovative component of the KNX® 9025 button series, designed to offer a complete and customizable solution for room control, particularly suitable for hotel and residential applications.

Key Features

This device consists of 10-channel capacitive buttons, each of which can be configured to manage on/off commands, dimmers, control of shutters and blinds, scenario recall, sequences of objects and other programmable command and control functions.

Temperature Control

The device includes a two-stage thermostat with integrated PI controller, allowing the control of heating and cooling equipment, valves, 2- and 4-pipe fan coils. It is also equipped with an integrated temperature probe and a rear input configurable as digital or analog, allowing the connection of an additional NTC probe (eelectron codes TS01A01ACC or TS01B01ACC) for a second temperature measurement.

Interface and Visualization

The KNX glass plate has an RGB LED bar on the front, freely configurable to display feedback or other quantities available on the KNX bus. The capacitive bar with swipe function allows the implementation of programmable KNX functions.

Personalization and Design

CUSTOM glasses offer the possibility of backlighting personalized and interchangeable icons, associated with the configured functions. The minimal design and the ability to customize the device through dedicated icon sets make it ideal for hotel and residential applications.

Assembly and Compatibility

The device can be mounted on English, German or Italian boxes of 2 or 3 modules and is compatible with the main standards. The power supply is via the EIB/KNX bus with a voltage between 21 and 32 Vdc.

Logical Functionality

The device has 32 logical blocks for creating simple expressions with logical or threshold operators, or complex expressions with conditional algebraic operators. It is possible to use predefined algorithms such as proportional temperature and humidity controls or dew point calculation, also integrating the “Virtual Pocket Logic”.

Applications

• Management of on/off controls, dimmers, shutters and blinds.
• Control of two distinct areas with a two-stage thermostat.
• Integration with magnetic sensors for managing commands in the hotel room.
• Configurable through the ETS® application program and communication with the KNX Data Secure protocol.
