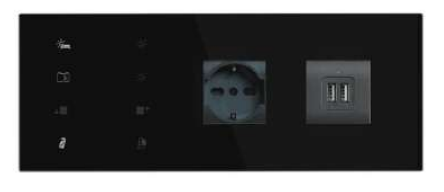

EELECTRON 9025GL10C03-B2R KNX CUSTOM BEDSIDE PLATES BLACK CUSTOM BEDSIDE PANEL PLATE — 2 SOCKETS — RIGHT SIDE BLACK

EELECTRON 9025GL10C03-B2R Product Description

The EELECTRON 9025GL10C03-B2R board belongs to the 9025 KNX® series, a range of capacitive buttons designed to manage a wide range of functions within residential, hotel and commercial environments.

Technical characteristics

This device is characterized by 10 channels of capacitive buttons, each of which can be configured to manage on/off commands, dimmers, shutters and blinds, execution and learning of scenarios, sequences of objects and much more.

Dimensions and Assembly

• Dimensions: 96 x 96 x 36 mm (2-module version) or 96 x 126 x 36 mm (3-module version)
• Compatible with English, German or Italian boxes of 2 or 3 modules

Power supply and connections

• EIB/KNX bus power supply: 21 ÷ 32 Vdc
• Digital inputs for potential-free contacts (clean contacts) with maximum connection cable length ≤ 10 m (braided cables)
• Analog input for NTC temperature probe (eelectron codes TS01A01ACC or TS01B01ACC) with maximum connection cable length ≤ 20 m (twisted cables)

Thermostat functionality

• 2-stage thermostat with integrated PI controller for controlling heating and cooling appliances, valves, 2- and 4-pipe fan coils, etc.
• Onboard temperature probe and possibility to connect an additional NTC probe for a second temperature measurement

Design and Personalization

• CUSTOM black glass plate with the possibility of backlighting personalized and interchangeable icons associated with the configured functions
• Minimal design that meets application standards, ideal for residential, hotel and commercial environments

Other Features

• RGB LED bar on the front to display feedback or other values available on the KNX bus (available in the RGB range)
• Compatibility with the main standards and a careful eye on the design and energy savings of buildings
