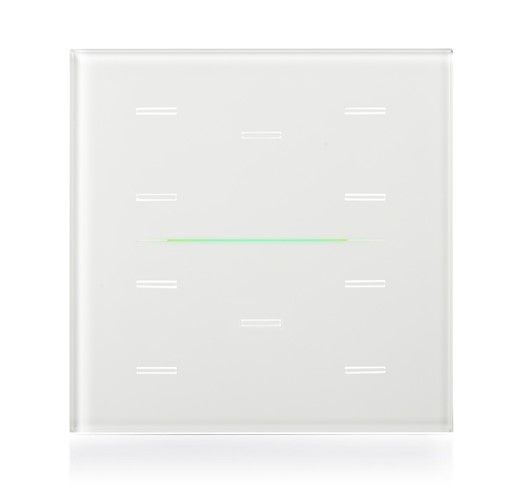

EELECTRON 9025GL10L01 9025 KNX CAPACITIVE BUTTON, WHITE GLASS 10 CHANNELS

EELECTRON 9025GL10L01 9025 KNX CAPACITIVE BUTTON, WHITE GLASS 10 CHANNELS

MT Code
ELC_9025GL10L01
Manufacturer Code
9025GL10L01
Brand
EELECTRON
EELECTRON
extra discount
Description

EELECTRON 9025GL10L01 Product Description

The EELECTRON 9025GL10L01 device belongs to the series of KNX® Line capacitive buttons, designed to offer a versatile and integrated solution for managing environments in residential and commercial environments.

Mechanical Characteristics

The device is made with a glass cover and available in a 2 or 3-module version, compatible with the main built-in boxes (English, German, Italian, etc.). The dimensions of the device are 96 x 96 x 36 mm for the 2-module version and 96 x 126 x 36 mm for the 3-module version.

Functionality

Each capacitive button can be configured to manage a variety of commands, including on/off, dimmer, control of shutters and blinds, recall of scenarios and control of sequences of objects. The device integrates a two-stage thermostat with integrated PI controller, allowing the control of heating, cooling equipment, valves and fan coils with 2 and 4 tubes.

Sensors and Inputs

The device includes an on-board temperature probe and an input on the rear side that can be configured as digital or analog. It is possible to connect an additional NTC temperature probe (eelectron codes TS01A01ACC, TS01B01ACC, TS01D01ACC) to obtain a second temperature measurement. In addition, a version with an integrated temperature and relative humidity sensor is available for controlling ambient humidity.

Visualization and Personalization

On the front side of the device there is a freely configurable RGB LED bar for displaying states or other quantities available on the KNX bus. The glass covers are also available in a CUSTOM version, allowing you to backlight personalized and interchangeable icons associated with the configured functions.

Food and Communication

The device is powered via the EIB/KNX bus with a voltage between 21 and 32 Vdc. The maximum length of the connecting cables is 10 meters (braided). The device includes the KNX communication interface and can communicate with the KNX Data Secure protocol.

Logic and Programming

The device has 32 logical blocks to create complex logical and algebraic expressions, including proportional temperature and humidity controls and dew point calculation. The “Virtual Pocket Logic” is also integrated for greater flexibility in programming.

Data Sheet
Codice Produttore 9025GL10L01
Brand EELECTRON
