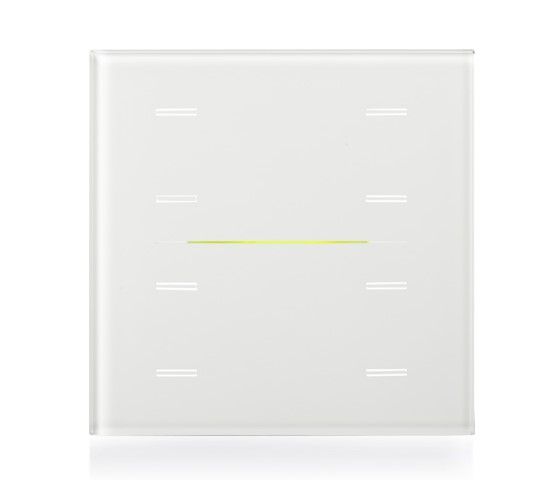

EELECTRON 9025GL08L01 9025 KNX CAPACITIVE BUTTON, WHITE GLASS 8 CHANNELS

EELECTRON 9025GL08L01 9025 KNX CAPACITIVE BUTTON, WHITE GLASS 8 CHANNELS

MT Code
ELC_9025GL08L01
Manufacturer Code
9025GL08L01
Brand
EELECTRON
EELECTRON
extra discount
Description
<p/the EELECTRON 9025GL08L01 product is a KNX® capacitive touch button intended for automation and home automation management of residential and commercial environments.

Key Features

This device is part of Eelectron's 9025 KNX® series and offers a series of innovative features for plant control and management.

Dimensions and Assembly

The 9025GL08L01 button has dimensions of 96 x 126 x 36 mm and can be mounted on English, German or Italian 3-module boxes.

Functionality

The device is equipped with 8 configurable capacitive channels for managing on/off commands, dimmers, shutters and blinds, as well as for executing and learning scenarios and sequences of objects.

Thermostat and Temperature Control

Including a 2-stage thermostat with integrated PI controller for controlling heating and cooling appliances, valves, 2- and 4-pipe fan coils. The device also has a temperature probe on board and can be connected to an additional NTC probe (eelectron codes TS01A01ACC, TS01B01ACC, TS01D01ACC) for a second temperature measurement.

Food and Communication

The power supply is via the EIB/KNX bus with a voltage between 21 and 32 Vdc. The device includes a KNX communication interface and can communicate with the KNX Data Secure protocol.

Inputs and Outputs

The buttons are designed for potential-free contacts (clean contacts) and allow a maximum length of connection cables of 10 meters (twisted).

Visualization and Personalization

The glass cover is available in a CUSTOM version and can be backlit with personalized and interchangeable icons. The RGB LED bar on the front side is freely configurable to display states or other quantities available on the KNX bus.

Configuration and Programming

The device can be configured using the ETS® application program and has 32 logical blocks to create complex logical and algebraic expressions.

Data Sheet
Codice Produttore 9025GL08L01
Brand EELECTRON
