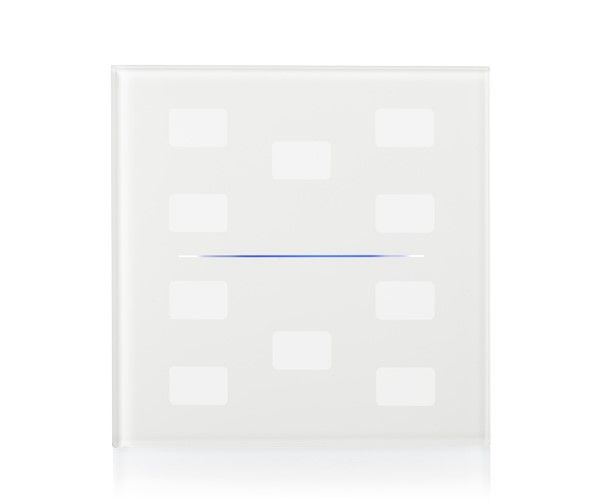

EELECTRON 9025GL10W01 9025 KNX CAPACITIVE BUTTON, WHITE GLASS CUSTOM 10 CHANNELS

EELECTRON 9025GL10W01 9025 KNX CAPACITIVE BUTTON, WHITE GLASS CUSTOM 10 CHANNELS

MT Code
ELC_9025GL10W01
Manufacturer Code
9025GL10W01
Brand
EELECTRON
EELECTRON
extra discount
Description
<p/the EELECTRON 9025GL10W01 device belongs to the LINE RGB series and is characterized by capacitive glass buttons, offering an elegant and functional solution for home and industrial automation.

Key Features

  • The device is available in a 10-channel version and can be mounted in boxes of 3 modules, compatible with British, German and Italian standards.
  • The dimensions of the device are 96 x 126 x 36 mm, making it suitable for standard installation in any environment.

Functionality

  • Each button can be configured to manage on/off commands, dimmers, control of shutters and blinds, recall of scenarios and sequences of objects.
  • The device includes a 2-stage thermostat with integrated PI controller for controlling heating and cooling appliances, valves and 2- and 4-pipe fan coils.
  • It is equipped with an integrated temperature probe and allows the connection of an additional NTC probe (eelectron codes TS01A01ACC or TS01B01ACC) for precise temperature measurements.

Interface and Communication

  • The device has a KNX communication interface and can operate with supply voltages between 21 and 32 Vdc.
  • The digital inputs are designed for potential-free contacts and support a maximum connection cable length of 10 meters (twisted).
  • The RGB LED bar on the front side allows the display of states or other quantities available on the KNX bus.

personalisation

  • The CUSTOM version of glasses can be backlit with personalized and interchangeable icons, associated with the configured functions.

Nutrition and Conditions of Use

  • The power supply is via EIB/KNX bus with a voltage between 21 and 32 Vdc.
  • The operating temperature of the device is between -5°C and +45°C, while the storage temperature is between -20°C and +55°C.
  • The maximum permissible relative humidity is 90% (non-condensing).
Data Sheet
Codice Produttore 9025GL10W01
Brand EELECTRON
