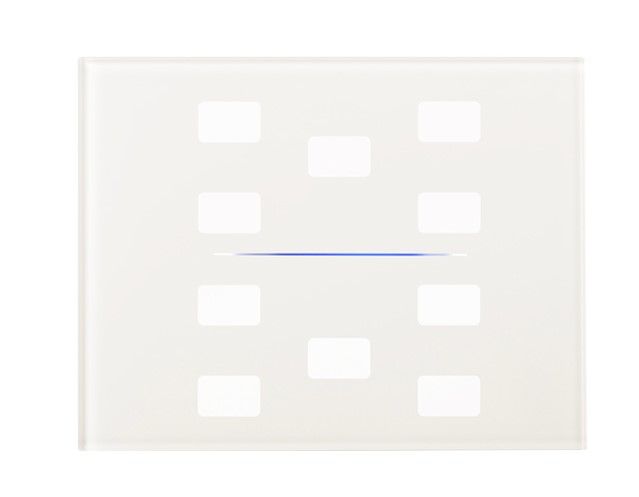

EELECTRON 9025GL310W01 KNX CAPACITIVE GLASS BUTTON, WHITE, 3 CUSTOM GLASS MODULES, 10 CHANNELS

EELECTRON 9025GL310W01 KNX CAPACITIVE GLASS BUTTON, WHITE, 3 CUSTOM GLASS MODULES, 10 CHANNELS

MT Code
ELC_9025GL310W01
Manufacturer Code
9025GL310W01
Brand
EELECTRON
EELECTRON
extra discount
Description
<p/the EELECTRON 9025GL310W01 product represents an innovative and versatile solution for the control and management of residential, hotel and commercial environments. This KNX capacitive button is part of EELECTRON's LINE SERIES series and is characterized by an elegant and functional design.

Key Features

The 9025GL310W01 is available in a 10-channel version, offering significant flexibility in managing commands. Each button can be configured to control different functions such as on/off, dimmers, shutters and blinds, as well as the execution of scenarios and sequences of objects.

Dimensions and Assembly

The device has dimensions of 96 x 126 x 36 mm and can be mounted on boxes of 3 modules, compatible with Italian, German and English standards.

Food and Communication

The power supply is via the EIB/KNX bus with a voltage of 21 ÷ 32 Vdc. The device includes a KNX communication interface, ensuring efficient and secure communication within the automation system.

Thermostat and Temperature Control

The 9025GL310W01 integrates a 2-stage thermostat with integrated PI controller, ideal for controlling heating and cooling appliances, valves, 2- and 4-pipe fan coils. It is possible to connect an additional NTC temperature probe (eelectron codes TS01A01ACC, TS01B01ACC, TS01D01ACC) to obtain a second temperature measurement.

User Interface

The capacitive bar on the front side allows intuitive navigation and effortless adjustment of programmable KNX functions. In addition, the RGB LED bar is freely configurable to display states or other quantities available on the KNX bus.

personalisation

The CUSTOM version of the 9025GL310W01 offers the possibility of backlighting personalized and interchangeable icons, associated with the configured functions, improving the user experience and the personalization of the interface.

Inputs and Outputs

Digital Inputs
  • For potential-free contacts (clean contacts)
  • Maximum connecting cable length: ≤ 10 m (braided)
Analog input
  • Can be connected to an NTC probe for temperature measurement
  • Maximum connecting cable length: ≤ 20 m (braided)

This product is ideal for residential, hotel and building applications, offering a perfect balance between functionality, design and technology.

Data Sheet
Codice Produttore 9025GL310W01
Brand EELECTRON
