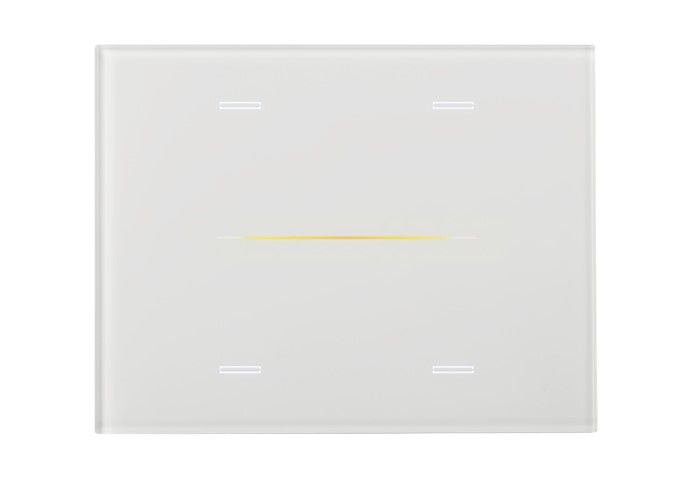

EELECTRON 9025GL304L01 KNX CAPACITIVE GLASS BUTTON, WHITE, 3 MODULES, 4-CHANNEL GLASS

EELECTRON 9025GL304L01 KNX CAPACITIVE GLASS BUTTON, WHITE, 3 MODULES, 4-CHANNEL GLASS

MT Code
ELC_9025GL304L01
Manufacturer Code
9025GL304L01
Brand
EELECTRON
EELECTRON
extra discount
Description
<p/the EELECTRON 9025GL304L01 product is a KNX capacitive switch designed for integration into domestic and industrial automation systems. This device is characterized by a modular and versatile structure, suitable for different control and management needs of environments.

Technical characteristics

The 9025GL304L01 has the following technical specifications:

  • Dimensions: 96 x 126 x 36 mm, making it compatible with 3-module built-in boxes (Italian, German or English).
  • Power supply: It operates via EIB/KNX bus with a voltage of 21 ÷ 32 Vdc.
  • Digital Inputs: Supports potential-free contacts (clean contacts) with a maximum length of connection cables of ≤ 10 m (twisted).
  • Analog Input: Allows the connection of an NTC temperature probe (eelectron codes: TS01A01ACC, TS01B01ACC, TS01D01ACC) for temperature measurements between -20°C and +100°C, -50°C and +60°C, or -40°C and +125°C.

Functionality

This KNX switch offers several key features:

  • Capacitive Buttons: It has 4 channels with configurable capacitive buttons to manage on/off controls, dimmers, shutters and other programmable control functions.
  • RGB LED bar: An RGB LED bar on the front side allows the display of states or other quantities available on the KNX bus, improving the user experience.
  • Temperature and Humidity Sensor: A version with integrated temperature and relative humidity sensor is available, which can be used to control actuators for the regulation of ambient relative humidity.
  • Customization: The glass covers are available in a CUSTOM version, with the possibility of backlighting personalized and interchangeable icons associated with the configured functions.

Applications

The 9025GL304L01 is ideal for a variety of applications, including:

  • Residential and Hotel: Suitable for controlling environments in residential and hotel settings, offering personalized and intuitive management of lighting, air conditioning and other functions.
  • Smart Building: It integrates perfectly into intelligent automation systems, facilitating the centralized management of various aspects of the building.
Data Sheet
Codice Produttore 9025GL304L01
Brand EELECTRON
