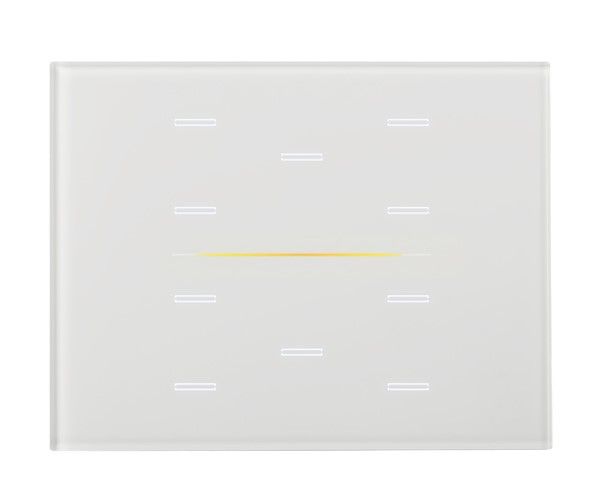

EELECTRON 9025GL310L01 KNX CAPACITIVE GLASS BUTTON, WHITE, 3 GLASS MODULES, 10 CHANNELS

<p/the EELECTRON 9025GL310L01 device belongs to the series of KNX capacitive buttons, designed to integrate perfectly into home and commercial automation systems.

Key Features

This button is available in a 10-channel version and stands out for its versatility and flexibility of configuration.

Dimensions and Assembly

The dimensions of the device are 96 x 126 x 36 mm, making it compatible with 3-module built-in boxes, according to Italian, German and English standards.

Functionality

Each button can be configured to manage on/off commands, dimmers, control of shutters and blinds, recall of scenarios and sequences of objects, among other functions.

In addition, the device includes a 2-stage thermostat with integrated PI controller, ideal for controlling heating and cooling appliances, valves and 2- and 4-pipe fan coils.

Food and Communication

The power supply is via the EIB/KNX bus with a voltage between 21 and 32 Vdc.

The device is equipped with a KNX communication interface, ensuring efficient and secure communication within the automation system.

Inputs and Sensors

The button has digital inputs for potential-free contacts and an analog input for connecting an NTC temperature probe (eelectron codes TS01A01ACC, TS01B01ACC or TS01D01ACC), allowing precise temperature measurements.

The maximum length of the connecting cables is 10 meters for the digital inputs and 20 meters for the temperature probe.

User Interface

The 9025 series includes an RGB LED bar on the front side, configurable to display states or other quantities available on the KNX bus, improving the user experience through an intuitive visual guide.

The CUSTOM version of glass allows you to backlight personalized and interchangeable icons, associated with the configured functions.

Conditions of Employment

The device operates in a temperature range between -5°C and +45°C and can be stored in a temperature range from -20°C to +55°C, with a non-condensing relative humidity of up to 90%.
