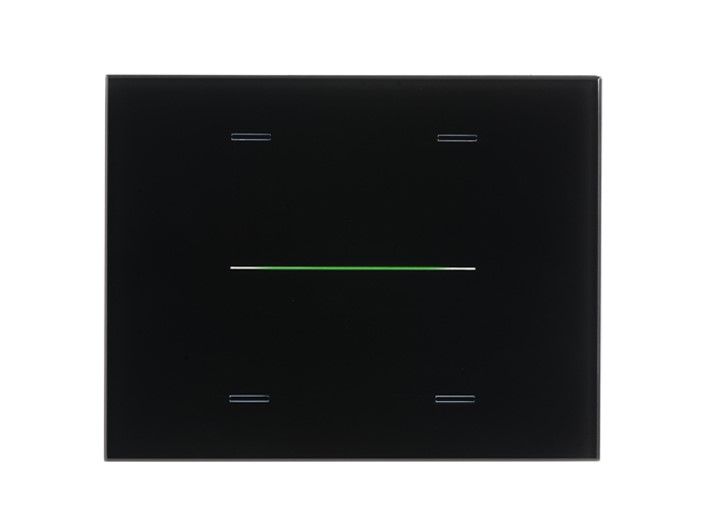

EELECTRON 9025GL304L03 KNX CAPACITIVE GLASS BUTTON, BLACK, 3 MODULES, 4-CHANNEL GLASS

EELECTRON 9025GL304L03 KNX CAPACITIVE GLASS BUTTON, BLACK, 3 MODULES, 4-CHANNEL GLASS

MT Code
ELC_9025GL304L03
Manufacturer Code
9025GL304L03
Brand
EELECTRON
EELECTRON
extra discount
Description

EELECTRON 9025GL304L03 Product Description

<p The KNX 9025GL304L03 glass button is an innovative component of the Eelectron 9025 series, designed to integrate perfectly into building automation systems and smart homes. This device features a black glass cover and has 4 control channels.

Technical characteristics

The 9025GL304L03 button is configurable to manage a variety of functions, including on/off controls, dimmers, shutters and blinds, as well as the execution and learning of scenarios and sequences of objects.

Dimensions and Assembly
  • Device dimensions: 96 x 126 x 36 mm
  • Compatible with boxes of 3 modules (Italian, German, English, etc.)
Food and Communication
  • EIB/KNX bus power supply: 21 ÷ 32 Vdc
  • KNX communication interface for full integration with the automation system
Inputs and Sensors
  • Digital inputs for potential-free contacts (clean contacts)
  • Max connecting cable length: ≤ 10 m (braided)
  • Analog input for NTC temperature probe (eelectron codes: TS01A01ACC, TS01B01ACC, TS01D01ACC)
  • Max connection cable length for the temperature probe: ≤ 20 m (intertwined)
Thermostat functionality

The device includes a 2-stage thermostat with integrated PI controller, ideal for controlling heating and cooling appliances, valves, 2- and 4-pipe fan coils.

User Interface

On the front side there is a capacitive bar with swipe function for implementing programmable KNX functions. In addition, a freely configurable RGB LED bar is available for displaying states or other quantities available on the KNX bus.

Logic and Programming

The device has 32 logical blocks for creating simple and complex expressions with logical, threshold and conditional algebraic operators. It also supports predefined algorithms such as proportional temperature and humidity controls and dew point calculation.

Data Sheet
Codice Produttore 9025GL304L03
Brand EELECTRON
