EELECTRON 9025GL10L03 9025 CAPACITIVE BUTTON KNX BLACK GLASS 10 CHANNELS

EELECTRON 9025GL10L03 Product Description

The EELECTRON 9025GL10L03 capacitive button is an innovative device designed for integration into home and building automation systems, compatible with the KNX protocol.

Technical characteristics

This button is part of the 9025 KNX® series and is available in a 3-module version, with dimensions of 96 x 126 x 36 mm, making it compatible with English, German or Italian boxes of 2 or 3 modules [2] [3].

Power supply and connections

The device is powered via the EIB/KNX bus with a voltage between 21 and 32 Vdc. Digital connections are designed for potential-free contacts, with a maximum connection cable length of 10 meters (twisted) [1] [3].

Functionality

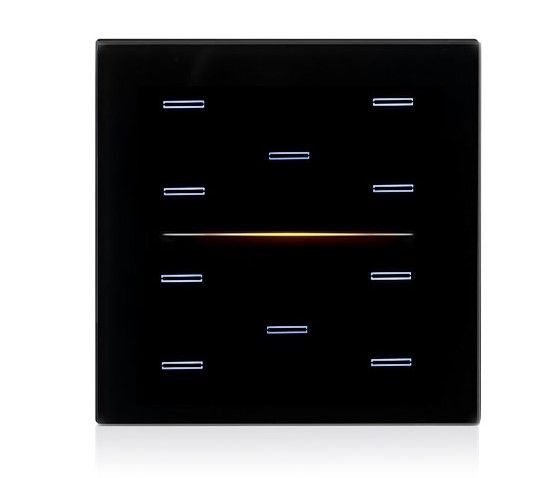

The capacitive touch button includes an RGB LED bar on the front side for displaying states or other quantities available on the KNX bus. It is configurable for managing on/off commands, dimmers, shutters and blinds, as well as for executing and learning scenarios and sequences of objects [2] [3].

Temperature Control

The device integrates a two-stage thermostat with integrated PI controller for controlling heating and cooling appliances, valves, 2- and 4-pipe fan coils. In addition, it is equipped with an analog input for temperature probe and can be connected to additional NTC probes (eelectron code TS01A01ACC or TS01B01ACC) to obtain a second temperature measurement [2] [3].

personalisation

The glass covers are also available in a CUSTOM version, with the possibility of backlighting personalized and interchangeable icons associated with the configured functions. The capacitive bar on the front side allows swipe functions for the implementation of programmable KNX functions [2] [4].

Logic and Programming

The device has 32 logical blocks to create simple or complex expressions with logical or threshold operators, and use predefined algorithms such as proportional temperature and humidity controls or dew point calculation. It is configurable through the ETS® application program and can communicate with the KNX Data Secure protocol [3].

Integration and Applications

The field of application of this device includes the management of residential and commercial environments, including hotel rooms, where it can be integrated with magnetic sensors and other devices for complete management of environments [3].
