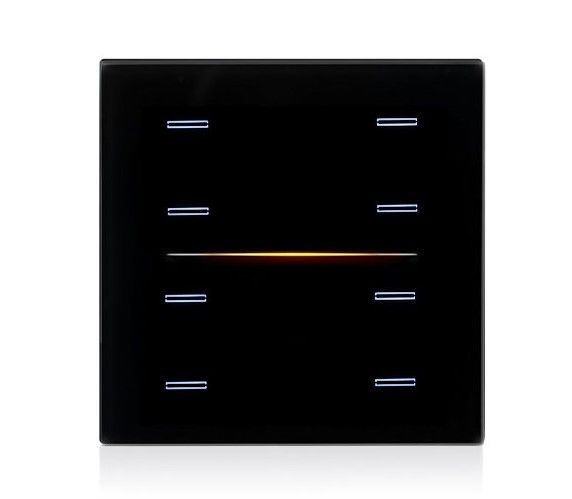

EELECTRON 9025GL08L03 9025 KNX CAPACITIVE BUTTON, BLACK 8-CHANNEL GLASS

EELECTRON 9025GL08L03 9025 KNX CAPACITIVE BUTTON, BLACK 8-CHANNEL GLASS

MT Code
ELC_9025GL08L03
Manufacturer Code
9025GL08L03
Brand
EELECTRON
EELECTRON
extra discount
Description

EELECTRON 9025GL08L03 Product Description

The EELECTRON 9025GL08L03 capacitive button is an innovative device designed for integration into domestic and industrial automation systems, compatible with the KNX protocol. This button is part of the KNX Line series and stands out for its versatility and functionality.

Technical characteristics

The device has the following technical characteristics:

  • Dimensions: The dimensions of the button are 96 x 126 x 36 mm, making it compatible with boxes of 2 or 3 modules according to Italian, German and English standards.
  • Power supply: The power supply is via the EIB/KNX bus with a voltage between 21 and 32 Vdc.
  • Digital and Analog Inputs: The button includes digital inputs for potential-free contacts and an analog input for connecting an NTC temperature probe (eelectron codes TS01A01ACC or TS01B01ACC).
  • Connection Cable Length: The maximum length of the connecting cables is 10 meters (braided).

Functionality

The 9025GL08L03 capacitive button offers a number of advanced features:

  • Command Configuration: It can be configured to manage on/off commands, dimmers, shutters and blinds, as well as for the execution and learning of scenarios and sequences of objects.
  • 2-Stage Thermostat: It integrates a 2-stage thermostat with PI controller for controlling heating and cooling appliances, valves, 2- and 4-pipe fan coils.
  • RGB LED bar: It includes an RGB LED bar on the front side for displaying states or other quantities available on the KNX bus.
  • Custom Glass Covers: The glass covers are available in a CUSTOM version, with the possibility of backlighting personalized and interchangeable icons associated with the configured functions.

Installation and Compatibility

The device is designed to be installed on boxes of 2 or 3 modules, ensuring compatibility with the main installation standards. The configuration takes place through the ETS® application program, allowing secure communication with the KNX Data Secure protocol.

Data Sheet
Codice Produttore 9025GL08L03
Brand EELECTRON
