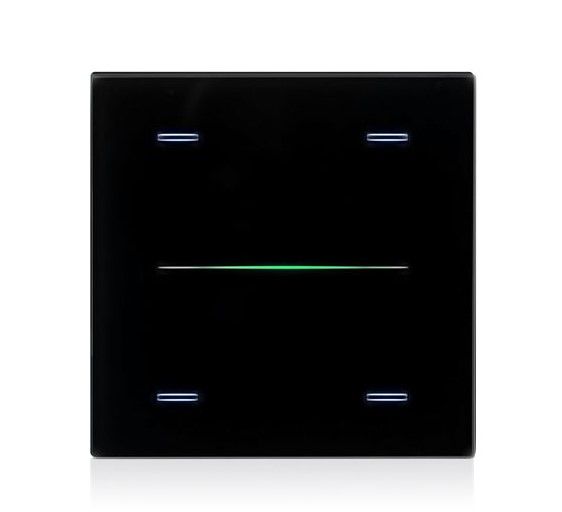

EELECTRON 9025GL04L03 9025 KNX CAPACITIVE BUTTON, BLACK GLASS 4 CHANNELS

EELECTRON 9025GL04L03 Product Description

The EELECTRON 9025GL04L03 capacitive button belongs to the KNX® Line series and is designed to offer an elegant and functional solution for managing domestic and industrial automation systems.

Technical characteristics

This device is available in a 4-channel version and is suitable for mounting on 3-module boxes, compatible with Italian, German and English standards.

Dimensions and Assembly

• Device dimensions: 96 x 126 x 36 mm
• Mounting on a 3-module English, German or Italian box

Food and Communication

• Power supply via EIB/KNX bus: 21 ÷ 32 Vdc
• KNX communication interface for full integration with the automation system

Inputs and Functionality

• Digital inputs for potential-free contacts (clean contacts)
• Maximum length of connecting cables: ≤ 10 m (braided)
• Analog input for temperature probe, compatible with NTC probes (eelectron codes TS01A01ACC or TS01B01ACC)

Control functions

• Configurable to manage on/off controls, dimmers, shutters and blinds
• Execution and learning of scenarios and sequences of objects
• 2-stage thermostat with integrated PI controller for controlling heating and cooling appliances, valves and fan coils

User Interface

• Capacitive bar with swipe function for implementing programmable KNX functions
• Freely configurable RGB LED bar for displaying states or other quantities available on the KNX bus
• Customizable glass covers with interchangeable icon backlighting

Logic and Programming

• Configurable device through the ETS® application program
• 32 logical blocks to create complex logical and algebraic expressions
• Use of predefined algorithms for proportional temperature and humidity controls
