EELECTRON 9025GL10W03 9025 KNX CAPACITIVE BUTTON, BLACK CUSTOM GLASS 10 CHANNELS

EELECTRON 9025GL10W03 9025 KNX CAPACITIVE BUTTON, BLACK CUSTOM GLASS 10 CHANNELS

MT Code
ELC_9025GL10W03
Manufacturer Code
9025GL10W03
Brand
EELECTRON
EELECTRON
extra discount
Description

EELECTRON 9025GL10W03 Product Description

The EELECTRON 9025GL10W03 capacitive button belongs to the 9025 KNX® series, designed to offer sophisticated and customizable management of home and industrial automation systems. This device is available in a 10-channel version and stands out for its elegance and functionality.

Technical characteristics

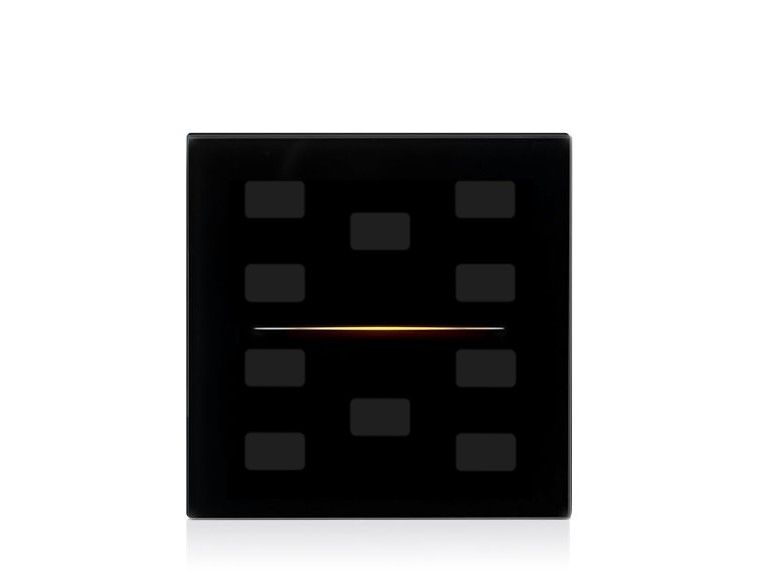

The 9025GL10W03 button is characterized by a black glass cover, interchangeable and customizable, which allows the backlighting of specific icons associated with the configured functions. The dimensions of the device are 96 x 126 x 36 mm, making it compatible with boxes of 2 or 3 modules according to Italian, German and English standards.

Power supply and connections

The device is powered via the EIB/KNX bus with a voltage between 21 and 32 Vdc. The digital inputs are designed for potential-free contacts, with a maximum connection cable length of 10 meters (twisted).

Functionality

Each button can be configured to manage various commands, including on/off, dimmers, shutters and blinds, as well as the execution and learning of scenarios and sequences of objects. The device includes a two-stage thermostat with integrated PI controller for controlling heating and cooling appliances, valves, 2- and 4-pipe fan coils.

Sensors and Visualization

The button is equipped with an analog input for connecting an NTC temperature probe (eelectron code TS01A01ACC or TS01B01ACC), allowing a second temperature measurement. The RGB LED bar on the front side is freely configurable to display states or other quantities available on the KNX bus.

Configuration and Logic

The device is configurable through the ETS® application program and can communicate with the KNX Data Secure protocol. It includes 32 logical blocks for creating simple and complex expressions with logical, threshold and conditional algebraic operators, as well as predefined algorithms for proportional temperature and humidity controls.

Integration and Applications

The KNX® 9025 series is designed to improve room control through a unique tactile interface and a central capacitive bar. It is particularly suitable for applications in residential, commercial and hotel environments, where the integrated management of lights, shutters, climate and access is essential.

Data Sheet
Codice Produttore 9025GL10W03
Brand EELECTRON
