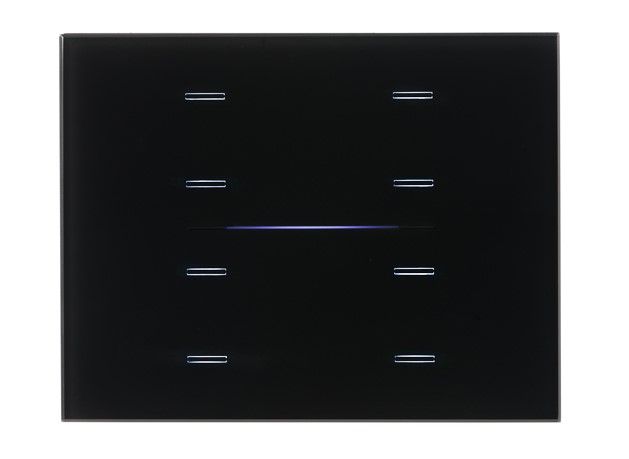

EELECTRON 9025GL308L03 KNX CAPACITIVE GLASS BUTTON, BLACK, 3 GLASS MODULES, 8 CHANNELS

EELECTRON 9025GL308L03 Product Description

The EELECTRON 9025GL308L03 product belongs to the LINE series of KNX® capacitive switches, designed for integration into domestic and industrial automation systems.

Technical characteristics

This device is available in a 3-module version, with dimensions of 96 x 126 x 36 mm, and can be mounted in English, German or Italian boxes of 2 or 3 modules.

Mechanical and Assembly Data

• Dimensions: 96 x 126 x 36 mm
• Assembly: English, German or Italian box of 2/3 modules

Food and Communication

• Power supply: EIB/KNX bus: 21 ÷ 32 Vdc
• Communication: KNX interface for communication with the KNX bus

Inputs and Outputs

• Digital inputs: For potential-free contacts (clean contacts), with maximum connection cable length ≤ 10 m (twisted)
• Analog input for temperature probe: Connectable to NTC probes with eelectron codes TS01A01ACC, TS01B01ACC, TS01D01ACC

Functionality

• Capacitive buttons: 8 configurable channels for on/off controls, dimmers, control of shutters and blinds, recall of scenes and sequences of objects
• Two-stage thermostat: With integrated PI controller for controlling heating, cooling equipment, valves and 2- and 4-pipe fan coils
• RGB LED bar: Freely configurable for displaying states or other quantities available on the KNX bus
• Virtual Pocket Logic: Available to create complex logical expressions with conditional algebraic operators and predefined algorithms

Integration and Configuration

• Configurable through the ETS® application program
• Communication with the KNX Data Secure protocol
• Integration with presence sensors and multisensors, measurement systems and other automation components

This device offers a complete and flexible solution for managing environments, both residential and commercial, ensuring a high level of customization and integration with other automation systems.
