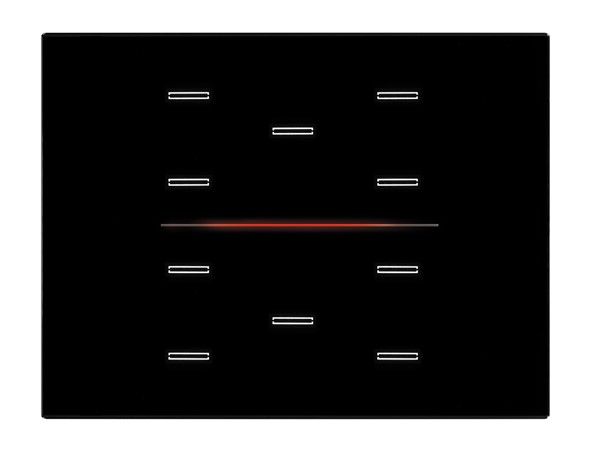

EELECTRON 9025GL310L03 KNX CAPACITIVE GLASS BUTTON, BLACK, 3 10-CHANNEL GLASS MODULES

EELECTRON 9025GL310L03 KNX CAPACITIVE GLASS BUTTON, BLACK, 3 10-CHANNEL GLASS MODULES

MT Code
ELC_9025GL310L03
Manufacturer Code
9025GL310L03
Brand
EELECTRON
EELECTRON
extra discount
Description
<p/the product EELECTRON 9025GL310L03 belongs to the KNX Line series of glass buttons, designed to offer an elegant and functional solution for controlling environments.

Key Features

This capacitive button is available in a 3-module version and offers 10 control channels. It is ideal for installation on standard electrical boxes of 2 or 3 modules, compatible with Italian, German and English standards.

Dimensions and Assembly

The dimensions of the device are 96 x 126 x 36 mm, making it easy to integrate into any existing electrical system.

Control Functionality

The 9025GL310L03 button can be configured to manage on/off commands, dimmers, shutters and blinds, as well as for the execution and learning of scenarios and sequences of objects.

Thermostat and Temperature Control

The device includes a two-stage thermostat with integrated PI controller, allowing the control of heating and cooling appliances, valves and fan coils with 2 and 4 tubes. In addition, it is equipped with an on-board temperature probe and can be connected to an additional NTC probe to obtain a second temperature measurement.

Interface and Communication

The capacitive bar on the front side of the button allows effortless adjustment through programmable swipe functions. The device also includes a configurable RGB LED bar for displaying states or other quantities available on the KNX bus.

Logic and Programming

The button has 32 logical blocks for creating simple or complex expressions with logical, threshold or conditional algebraic operators. It is also possible to use predefined algorithms for proportional temperature and humidity controls or for calculating the dew point.

Design and Personalization

The black glass cover offers an elegant design and can be customized with interchangeable and backlit icons, associated with the configured functions.

Compatibility and Standards
  • Compatible with the KNX protocol and KNX Data Secure.
  • Configurable through the ETS® application program.
  • Completely Made in Italy product, designed for residential, hotel and building applications.
Data Sheet
Codice Produttore 9025GL310L03
Brand EELECTRON
