ELMO TRIAL485H 9.9 GHz TRIAL485H differential frequency detector

TRIAL485H 9.9 GHz differentiated frequency detector

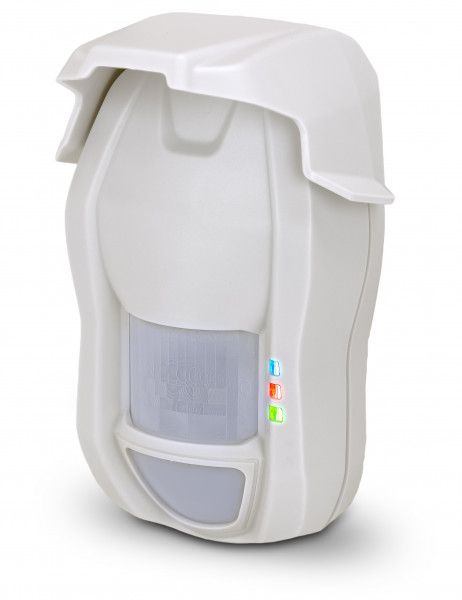

TRIAL485H is a triple technology detector (MW + 2IR) for indoor and outdoor installations equipped with a lens with horizontal curtain protection with a maximum range of 15m with direct connection to an RS485 serial line. The strength of TRIAL485H lies in the possibility of being completely manageable and programmable via software in an absolutely simple and intuitive way: parameters such as detected waveform, last alarm of the historian, sensor states and temperature can now be monitored in real time. The detector also offers numerous functions that make it possible to obtain absolute detection accuracy and a very high immunity to disturbances and attempts at tampering: double PIR, 3D function, anti-masking circuit, anti-blinding and anti-disorientation circuit (thanks to the presence of a high-sensitivity accelerometric sensor with operation on two axes). TRIAL485H is certified IMQ-Alarm EN 50131- 2-4:2008 for grade 3, environmental class 4.
