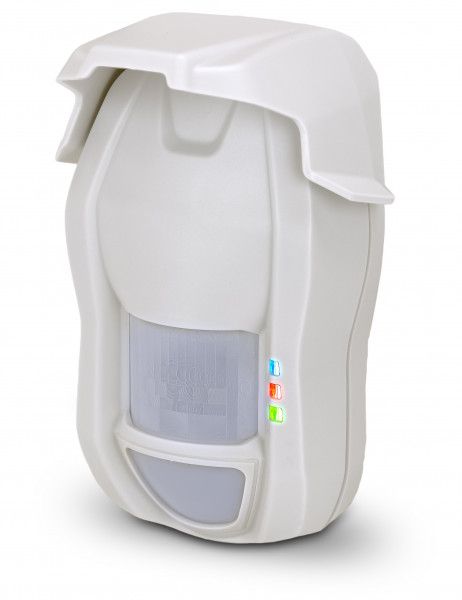

ELMO TRIAL485 9.9 GHz TRIAL485 differential frequency detector

TRIAL485 differential frequency 9.9 GHz detector

TRIAL485 is a triple technology detector (MW + 2IR) for indoor and outdoor installations equipped with a multifocal lens with a maximum range of 15 m, a dedicated anti-slip lens with direct connection to an RS485 serial line. The strength of TRIAL485 lies in the possibility of being completely manageable and programmable via software in an absolutely simple and intuitive way: parameters such as detected waveform, last alarm of the historian, sensor states and temperature can now be monitored in real time. The detector also offers numerous functions that allow obtaining absolute detection accuracy and very high immunity to disturbances and attempts at tampering: double PIR, 3D function, anti-masking circuit, anti-blinding, anti-slip and anti-disorientation circuit (thanks to the presence of a high-sensitivity accelerometric sensor with two-axis operation). TRIAL485 is certified IMQ-Alarm EN 50131- 2-4:2008 for grade 3, environmental class 4.
