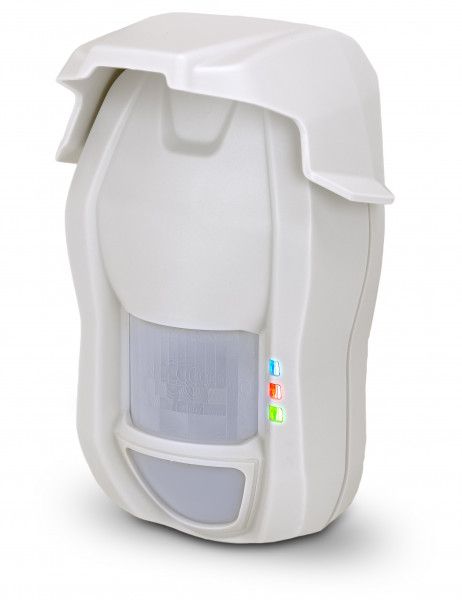

ELMO TRIALV 9.9 GHz differential frequency TRIALV detector
- MT Code
- ELM_TRIALV
- Manufacturer Code
- TRIALV
- Brand
- ELMO
TRIALV 9.9 GHz differentiated frequency detector
TRIALV is a dual-technology detector (MW + IR) for indoor and outdoor installations equipped with a lens with vertical curtain protection with a maximum range of 15 meters, a dedicated lens for anti-slip and relay outputs. Its strengths include numerous functions that make it possible to obtain absolute detection accuracy and a very high immunity to disturbances and attempts at tampering: double PIR, 3D function, anti-masking circuit, anti-blinding, anti-slip and anti-disorientation circuit (thanks to the presence of a high-sensitivity accelerometric sensor with two-axis operation). The particular shape of the TRIALV container makes it easy to install on the wall even with the 6° fixed inclination bracket for 2.1 m installations supplied. For outdoor installation, a protective canopy is supplied for greater protection against atmospheric agents and the glare of sunlight. TRIALV is certified IMQ-Alarm EN 50131- 2-4:2008 for
grade 3, environmental class 4.Codice a barre | 8000002671439 |
---|---|
Codice Produttore | TRIALV |
Brand | ELMO |
MT TRIALV 2021 02 IMQ EN
|
2.2 MB |
