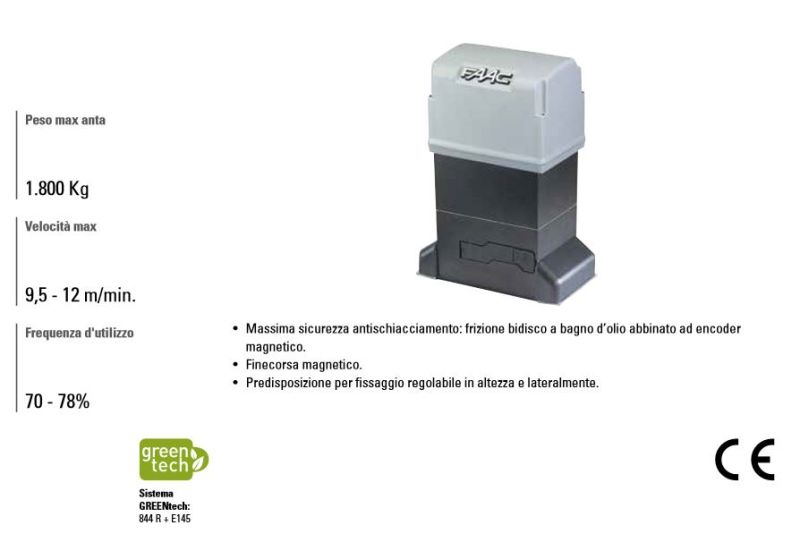

FAAC 109837 844 ER Z16 GEARMOTOR

844 ER Z16 GEAR MOTOR 230V Max door weight: 1,800 Kg Max speed: 9.5 — 12 m/min. Frequency of use: 70 - 78% - Maximum anti-crush safety: two-disc oil-filled clutch combined with a magnetic encoder. - Magnetic running window. - Predisposition for adjustable height and side mounting. 844 E R Z16, designed for rack applications, includes: a gearmotor with pinion and 780D electronic board, window magnets, release key, protective covers.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: Single-phase asynchronous Max power: 660 W Max torque: 37 Nm - Max thrust force: 1,160 N- Reduction ratio: 1:30 Max leaf width: 40 m Sash speed: 9.5 m/min Speed regulation and motor control: No Stroke window: Magnetic Sprocket: Z16 module 4 Encoder: Magnetic Encoder Force adjustment: Double disc clutch in oil bath and via board Ambient operating temperature: -20°C ÷ +55°C Thermoprotection: 120°C Degree of protection: IP44 Weight: 14.5 Kg Oil type: FAAC HP OIL Dimensions (LxDxH): 277 x 155 x 388 mm Max door weight: 1,800 Kg Frequency of use: 70% Electronic equipment: built-in 780D
