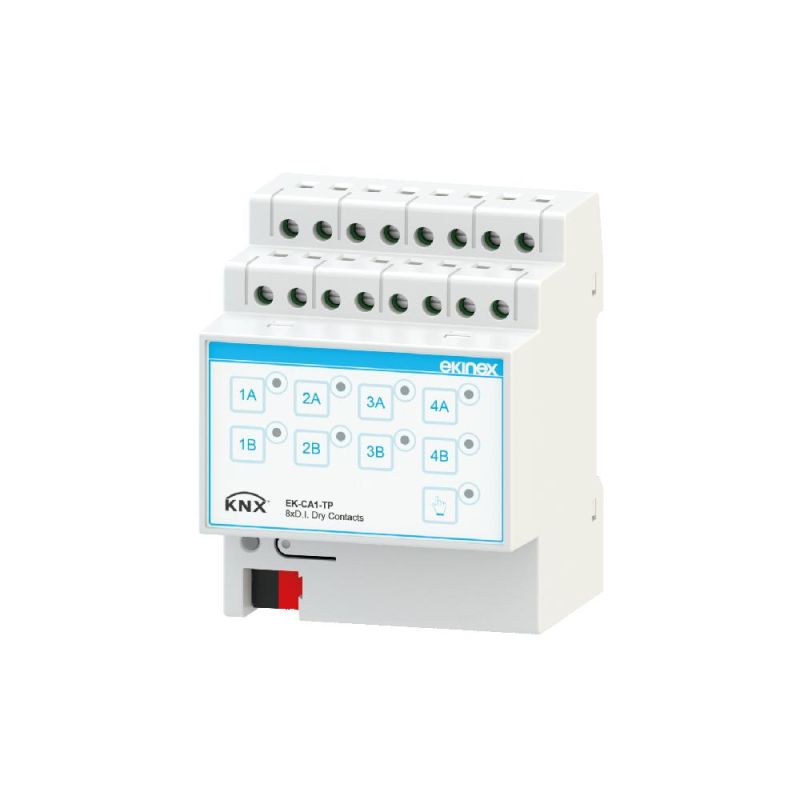

EKINEX EK-CA1-TP 8 channel binary input

8 channel binary input

The Ekinex® EK-CA1-TP binary input has 8 independent input channels for connecting traditional commands and sensors equipped with potential-free contacts or passive NTC temperature probes to the KNX bus. Using the device it is possible to command and control bus functions with normal switches, buttons or sensors (not communicating natively on the KNX bus) or binary signals made available by other devices. The polling voltage of the input channels is produced inside the device. The device has an integrated KNX bus communication module and is designed for mounting on a 35 mm profile rail. Power is supplied via the KNX bus and no auxiliary power is required.
