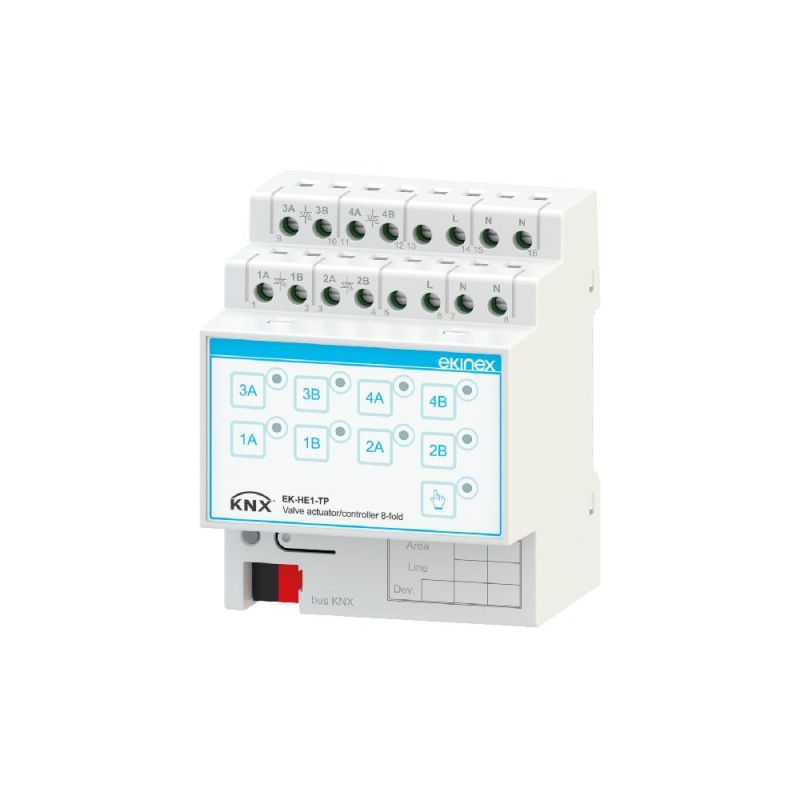

EKINEX EK-HE1-TP 8-channel actuator/controller for electrothermal drives

8-channel actuator/controller for electrothermal drives

The Ekinex® EK-HE1-TP actuator/controller allows you to control valve drives in hydronic systems for the air conditioning of a room. The device can perform the function of a simple actuator in combination with one or more KNX room thermostats or that of a regulator/actuator with acquisition of the temperature value from one or more KNX room probes. The device is suitable for 2 or 4 pipe hydraulic distribution systems with ON/OFF control of electrothermal drives for shut-off valves. The membrane keyboard allows manual control and includes LEDs for status indication; a button allows you to switch between automatic and manual operation. The device has an integrated KNX bus communication module and is designed for mounting on a 35 mm profile rail. Power is supplied via the KNX bus; 230 Vac mains voltage is additionally required for operation.
