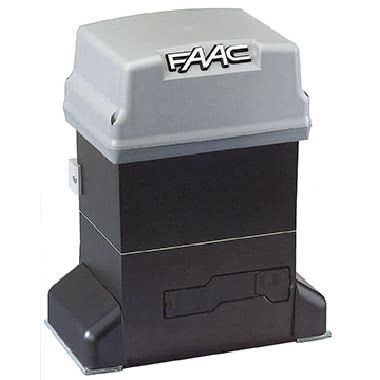

FAAC 109776 Motor Gear Motor For Sliding Gates 746 ER Z16

Motor Gear Motor For Sliding Gates 746 ER Z16

230V gearmotor Max door weight: 400 — 600 Kg Max speed: 9.6 — 12 m/min. Frequency of use: 70% - Maximum anti-crush safety: two-disc oil-filled clutch combined with a magnetic encoder. - Magnetic window. - Arrangement for adjustable height and side mounting. 746 E R Z16 and ER Z20, designed for rack applications, include: a gearmotor with pinion and 780D electronic board, window magnets, unlock key, protective covers.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: Single-phase asynchronous Max power: 400 W Max torque: 26 Nm - Max thrust force: 810 N - Reduction ratio: 1:30 Max leaf width: 40 m Sash speed: 9.6 m/min Speed regulation and motor control: No Stroke window: Magnetic Sprocket: Z16 module 4 Encoder: Magnetic Encoder Force adjustment: Double disc clutch in oil bath and via board Ambient operating temperature: -20°C ÷ +55°C Thermoprotection: 120°C Degree of protection: IP44 Weight: 14 Kg Oil type: FAAC HP OIL Dimensions (LxDxH): 277 x 155 x 337 mm Max door weight: 600 Kg Frequency of use: 70% Electronic equipment: built-in 780D
