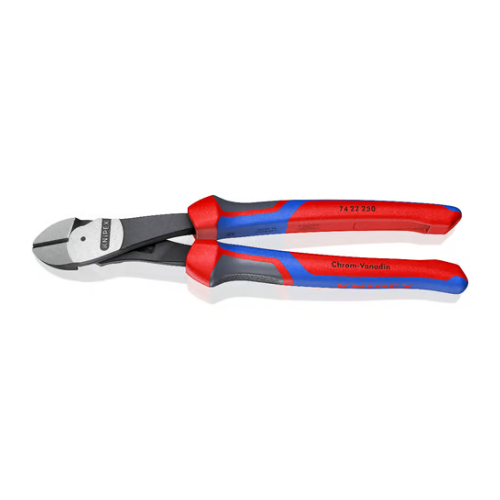

74 22 250 KNIPEX Mechanical side cutter

The KNIPEX 74 22 250 high lever diagonal cutter is designed for intensive and continuous use, offering high cutting performance with minimal effort.

Technical characteristics

• Length: 250 mm
• Weight: 437 g
• Dimensions: 250 x 55 x 24 mm
• Material: Chromium-vanadium steel, forged and hardened in several phases
• Cutting edge: Induction-hardened with a hardness of about 64 HRC

Cutting performance

• Cutting capacity for medium hard wire: up to Ø 4.6 mm
• Cutting capacity for hard wire: up to Ø 3.5 mm

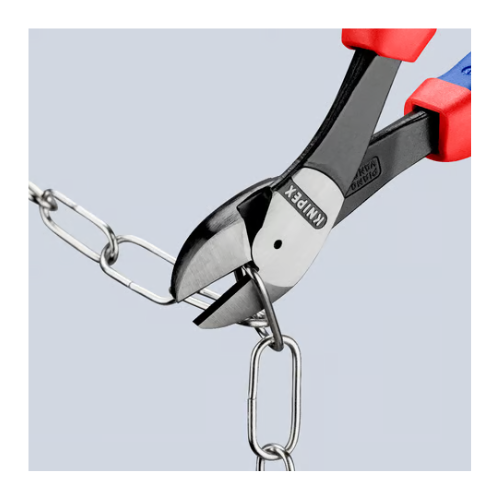

• Cutting capacity for piano wire (spring steel): up to Ø 3.0 mm

Design and Construction

• Forged pivot axle for heavy duty use
• Handles with multi-component grips for an ergonomic and comfortable grip
• Polished head and black textured handles
• Compared to the DIN ISO 5749 standard, REACH compliant and does not contain SVHC, RoHS compliant

Advantages

• 20% reduction in effort compared to conventional diagonal cutters of the same length
• Optimal cutting edge angle and transmission ratio to maximize cutting performance
• Designed to adhere firmly to the hand thanks to the ergonomic design of the grips
