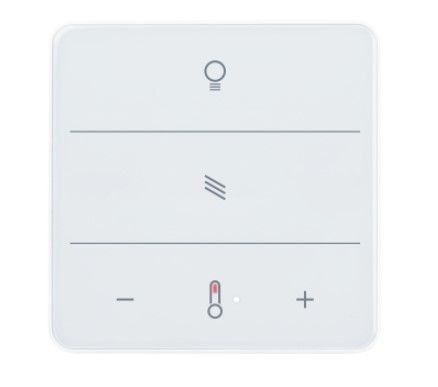

ELSNER 71060 71060 KNX eTR MultiTouch Light/Sunblind Taster for Light, Sonnenschutz, Temperature, white

ELSNER 71060 71060 KNX eTR MultiTouch Light/Sunblind Taster for Light, Sonnenschutz, Temperature, white

MT Code
ELS_71060
Manufacturer Code
71060
Brand
ELSNER
extra sconto di benvenuto
Description
<p/the ELSNER 71060 product, called KNX eTR MultiTouch Light/Sunblind, is a multifunctional button designed to be integrated into the KNX building bus system. This device has touch-sensitive buttons that allow you to recall various functions within the building automation system.

Functionality

The KNX eTR MultiTouch Light/Sunblind button can be configured to manage a variety of functions, including:

  • Light control
  • Control of awnings and sunscreens
  • Controlling predefined scenes
  • Adjusting the position and blades of the curtains
  • Checking blinds and awnings (up/down/stop)
  • Control of outdoor curtains (in/outside/stop)
  • Window control (closed/open/firm)
  • Use as an 8 or 16 bit encoder
  • Recalling and storing scenarios

Technical characteristics

The following are the main technical characteristics of the product:

  • Case: Authentic glass and plastic
  • Colors: White RAL 9003 and black RAL 9005
  • Dimensions: Approximately 81.5 mm x 81.5 mm
  • Mounting depth: About 12 mm
  • Total weight: About 70 g
  • Ambient temperature: -5°C... +45°C
  • Ambient humidity (non-condensing): 5%... 95%
  • Storage temperature: -30°C... +85°C
  • Overvoltage category: III
  • Pollution degree: 2

Connectivity and Configuration

The device has the following connectivity and configuration features:

  • KNX bus: Medium TP1-256, S-Mode configuration
  • Maximum group addresses: 183
  • Maximum allocations: 183
  • Communication objects: 44/55/73
  • Nominal voltage: 30 V SELV
  • Maximum power consumption: 10 mA
  • KNX connectors: Spring and screw terminals, conductor cross-section 0.2... 0.75 mm² for solid and flexible conductors, 0.25... 0.34 mm² for flexible conductors with ferrules

Additional Sensors and Features

The product also includes an integrated temperature sensor, which allows you to receive external temperature readings via bus and to process them within the KNX system.

Data Sheet
Codice Produttore 71060
Brand ELSNER
