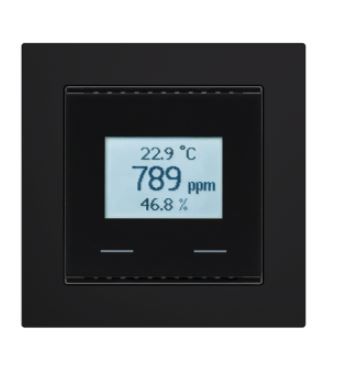

ELSNER 70974 70974 KNX VOC/THUP Touch CH Raum-Controller, Mix/Temperature/Light, black

Product Description ELSNER 70974 KNX VOC/TH-UP Touch CH

The ELSNER 70974 KNX VOC/TH-UP Touch CH environment controller is a multifunctional device designed for the control and management of the internal environment, integrating functions for measuring the concentration of volatile organic compounds (VOC), temperature and humidity. This device is compatible with the KNX protocol and integrates perfectly into home and industrial automation systems.

Measurement functionality

The device measures the VOC concentration in the range from 400 to 2000 ppm, the temperature in the range from 0 to +50°C and the relative humidity in the range from 0% to 95% RH. Also, calculate the dew point.

Ventilation and Heating/Cooling System Control

The controller includes a PI regulator that allows you to control ventilation based on VOC concentration and air humidity, as well as to manage the heating/cooling system based on temperature.

Logic and Comparison

• 4 AND logic gates and 4 OR logic gates, each with 4 inputs. Each switching event, as well as 16 logic inputs in the form of communication objects, can be used as inputs for the logic gates.
• 2 drive variable comparators for the output of minimum, maximum or average values. Each with 5 inputs (for values received through communication objects).

Configuration and Communication

The device is configured using the KNX ETS 5 software. The device supports 224 communication objects and operates on the KNX bus voltage, with a maximum current of 20 mA.

Physical Characteristics

• Plastic house, available in two colors: black (similar to RAL 9005) and white (similar to RAL 9010).
• Wall mounting in a Ø 60 mm housing, 42 mm deep, or in a hollow wall housing for a Ø 68 mm hole.
• Protection category IP 20.
• Dimensions of the house: about 60 x 60 mm (L x H), mounting depth about 8 mm, base about 71 x 71 mm (L x H).
• Total weight: approximately 68 g.
• Ambient operating temperature: 0... +50°C, storage temperature: -10... +60°C.
• Ambient humidity: min. 10% RH, max. 95% RH, avoid condensation.

Display and Accessories

The device includes a display and a mounting adapter with screws. It is necessary to purchase the cover frame (for 60 x 60 mm insert) and the mounting plate (77 mm) separately for Swiss installation standards.
