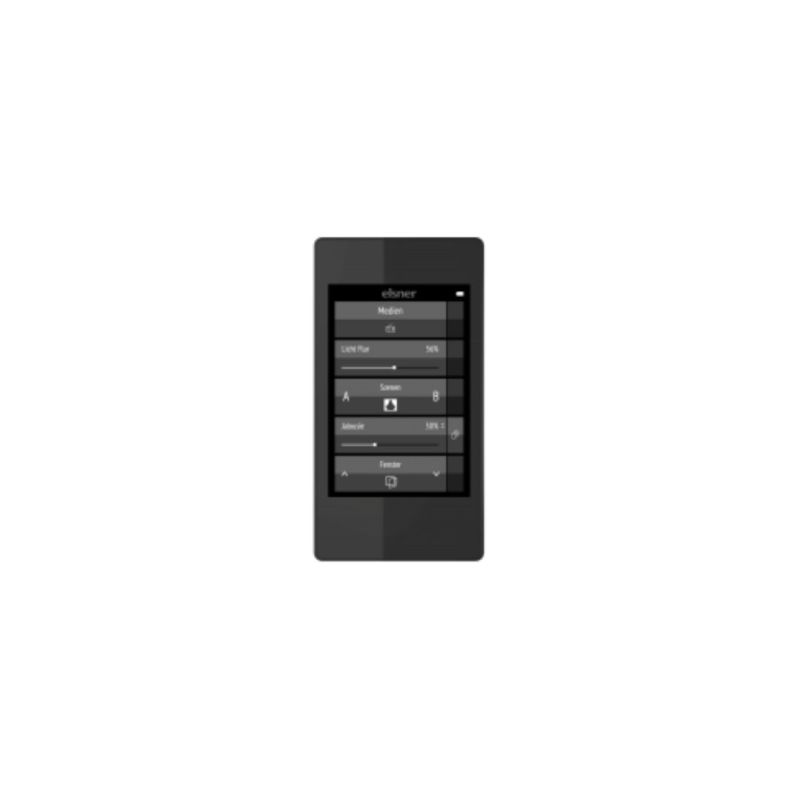

ELSNER 70747 Remo KNX RF Radio Remote Control for KNX RF

The ELSNER 70747 remote control, called Remo KNX RF, is a wireless device designed to integrate perfectly with KNX RF systems in S-Mode mode. This device offers a wide range of functionality for controlling and managing various smart devices in a home or commercial environment.

Key Features

The Remo KNX RF operates through a TFT color capacitive touch display, with a resolution of 320 x 480 pixels and the ability to adjust the brightness. The device is powered by a lithium battery rechargeable via USB 2.0 Micro-B cable, with a battery charge status indicator and a warning when the charge drops below 20%.

Configuration and Personalization

<p-The device is configured using the KNX ETS software. The 32 available channels can be individually set and named directly on the device or through the ETS. In addition, the display sequence can be changed directly on the device, and the setting functions can be locked or unlocked via the application and bus.

Control Functionality

• Control of devices such as curtains, blinds, shutters and windows.
• Temperature regulation for heating and cooling systems.
• Changing the color of the RGBW light and the color temperature of the light.
• Call and save scenes.
• Control of multimedia equipment.
• Indication of bus values (for example, status, sensor values).

Technical Specifications

• Plastic house, black color, degree of protection IP 40.
• Dimensions: approximately 64 x 122 x 11 mm (W x H x T).
• Weight: about 100g
• Operating ambient temperature: 0... 50 °C, storage -10... +60 °C.
• Ambient humidity: 5... 95% RH, avoid condensation.
• Operating voltage: built-in battery 3.8 V DC.
• Wireless frequency: 868.2 MHz.
• Group addresses: 512 maximum.
• Assignments: Maximum 1024.
• Communication objects: 417.

To communicate with wired KNX devices (KNX TP), a media coupler is required that connects KNX RF and KNX TP.

The device is not suitable for security applications, such as emergency stops or emergency calls. It is important to protect the remote control from rain, frost and moisture to prevent damage to electronic components.
