ELSNER 70715 70715 KNX RF S1R-B2 compact Multifunctional Radio Actuator, 2 Binary Inputs

70715 KNX RF S1R-B2 compact Multifunctional Radio Actuator, 2 Binary Inputs

- Multifunctional for 1 drive (blind actuator, roller shutter actuator, window actuator, awning actuator) or 2 devices (switching actuator)
- With scenes
- Inputs for local push-buttons
- Compact design for can installation
- Radio communication (KNX RF)

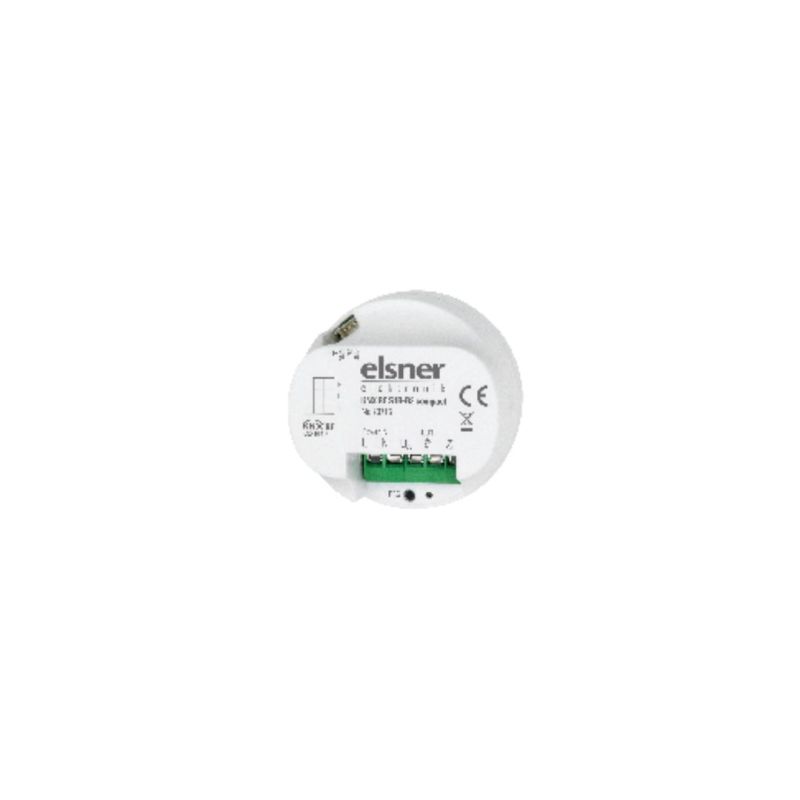

The Radio Actuator KNX RF S1R-B2 compact has got a multifunctional output which can connect to either a drive with Up/Down control (blind, awning, shutter, window) or two switchable devices (On/Off for light and ventilation).Because the output is designed to be free of potential, other systems can also be controlled, e.g. via the manual switch input on a motor control unit.
The application offers numerous options for blocking and priority definitions (e.g. manual-automatic).
Scenes can be saved and called up via the bus (scene control with 16 scenes).
2 digital inputs are available for the connection of binary contacts. A pushbutton, for example, can be connected here.
