SATEL INT-TSH2-W 7 inch white capacitive touch keyboard
- MT Code
- SAT_INT-TSH2-W
- Manufacturer Code
- INT-TSH2-W
- Brand
- SATEL
![SATEL SATEL](https://images.ctfassets.net/g6z2so3d6429/1tWCoB0AZf2vA7cIXRLCyM/af4f6f0caf58c71d596f24573fb189bf/satel_160x160.jpg?w=260&h=260&fm=webp&q=80)
![extra sconto di benvenuto](https://images.ctfassets.net/g6z2so3d6429/1nCII0xdbZgmEJPENaWasr/e37d4000d07fb07137d1d55247893c74/Benvenuto2024_.jpg?w=540&fm=webp&q=80)
Description

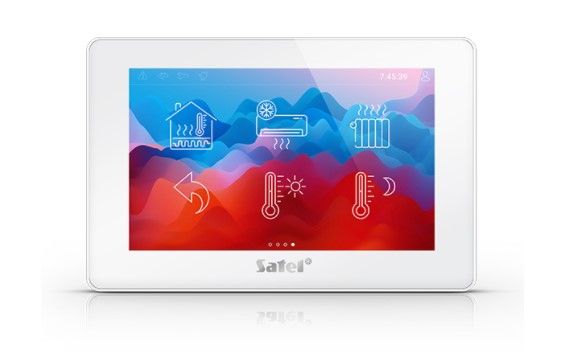

7 inch white capacitive touch keyboard. 1024x600 display with 16 million colors. 24 pages and 64 customizable scenarios. Also available in black (INT-TSH2-B)
INT-TSH2 was designed to make every operation offered by the INTEGRA, VERSA and PERFECTA 64 M control units easy and intuitive, with the quality and comfort of using smartphones and tablets to which we are accustomed. The keypad represents an ideal solution for people who want simple management combined with broad functionality including building automation functions, e.g. based on the KNX standard. The combination of the compact size and attractive design makes the device ideal for any environment.
Description:
- 7" capacitive glass touchscreen with swipe management
- 1024x600 screen resolution, 16.7 million colors (true color)
- multilevel graphical interface customizable by the user
- up to 24 additional screens
- customizable and adaptable interface
- more than 20 predefined themes
- support for custom themes
- widget for operating the keyboard, controlling the alarm system and automation devices connected to the control panel
- control of the system via MACRO functions, which activate a sequence of different commands (including home automation commands)
- rapid activation of PANIC, FIRE and MEDICAL alarms
- compatibility with INTEGRA (INTEGRA Firmware 1.20 or higher), VERSA (VERSA Firmware 1.10 or higher) and PERFECTA 64 M control panels
- screensaver with the possibility of displaying clock, date, system component states (zones, gates, exits) and temperatures (INTEGRA, INTEGRA Plus, PERFECTA 64 M)
- option to view a slideshow (photo frame function)
- LEDs that inform about the current system status, located above the screen
- 2 programmable wired zones (INTEGRA and INTEGRA Plus only)
- support for NO and NC type detectors, as well as roller shutter and vibration detectors;
- support for EOL, 2EOL and 3EOL configuration (3EOL only with INTEGRA Plus)
- programming of the end-of-line resistor values
- integrated speaker for acoustic signal
- adjustment of the volume of the acoustic signal
- Adjustable screen brightness with day/night mode
- built-in microSD memory card slot (for storing digital photo frame images, additional screen backgrounds and custom zone violation sounds - chimes)
- anti-tamper contact for protection against opening or detachment from the wall
- available in white (INT-TSH2-W) and black (INT-TSH2-B) versions
Data Sheet
Codice Produttore | INT-TSH2-W |
---|---|
Brand | SATEL |
Download
INT TSH2 W IT
|
136.9 kB |
