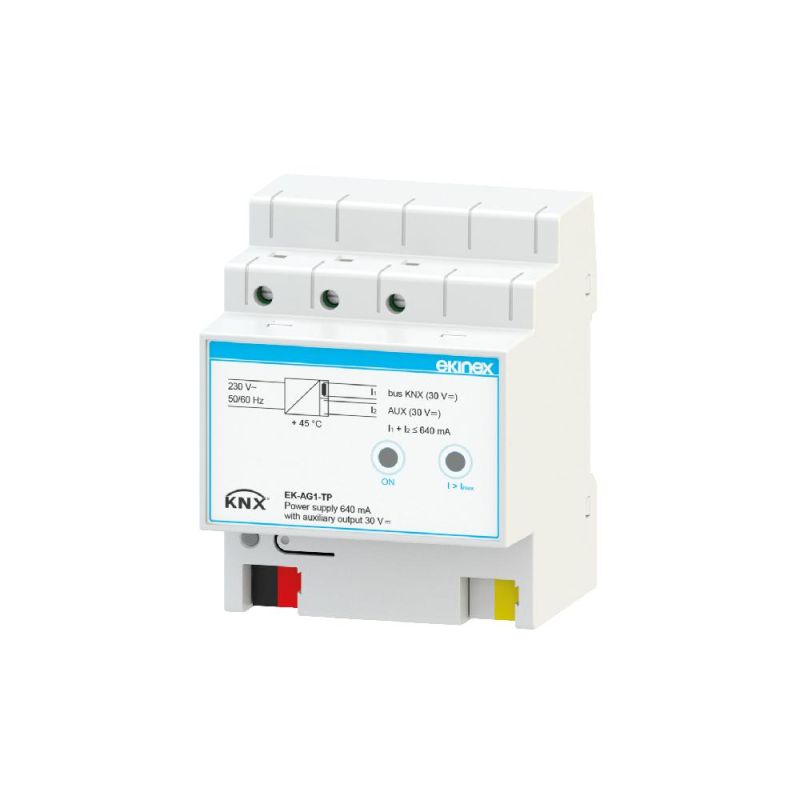

EKINEX EK-AG1-TP 640 mA bus power supply with 30 Vdc auxiliary output

640 mA bus power supply with 30 Vdc auxiliary output

The Ekinex® power supply produces and monitors the 30 Vdc voltage necessary for the operation of the KNX bus system. A coil integrated into the device provides decoupling between the power supply and the bus line. A maximum of 64 KNX devices can be connected to a bus line powered by the 640 mA power supply. The output has overload and short circuit protection. The EK-AG1-TP version has an additional 30 Vdc output which can be used for the auxiliary power supply of other SELV safety extra low voltage devices. The total current made available by the two outputs (KNX bus line and auxiliary power supply) cannot exceed 640mA. The device is able to support short mains voltage interruptions (max 200 ms).
