FAAC 109542 230v Side Motor Gear Motor For Sectional Doors 541 V

230v Side Motor Gear Motor For Sectional Doors 541 V

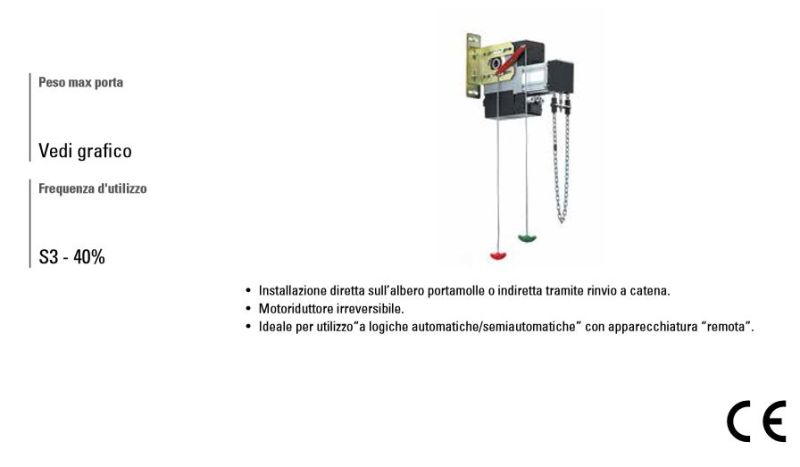

230V gearmotor for industrial sectional doors Frequency of use: S3 — 40% - Direct installation on the spring shaft or indirect through chain referral. - Irreversible gear motor. - Ideal for “automatic” /semi-automatic logic use with “remote” equipment. 541 V includes: a gearmotor with integrated fender and encoder, fixing plate, “cord” emergency unlocking device, “chain” manual movement device (winch) for installations up to 4 m high.

TECHNICAL CHARACTERISTICS: Network supply voltage: 220-240V~ 50/60 Hz Electric motor: Single-phase asynchronous Max power: 800 W Motion grip: Through shaft diameter 25.4 mm (1″) Motion grip rotation speed: 23 rev/min (*) Max stroke: 24 laps Max torque: 50 Nm (*) Max door weight: See graph FIELD OF APPLICATION Encoder: Integrated Ambient operating temperature: -20 °C ÷ +55 °C Degree of protection: IP54 Oil type: FAAC HP OIL Weight: 14 Kg Dimensions (LxDxH): 92 x 376 x 266 mm Electronic equipment: Not included Frequency of use: S3 — 40%
