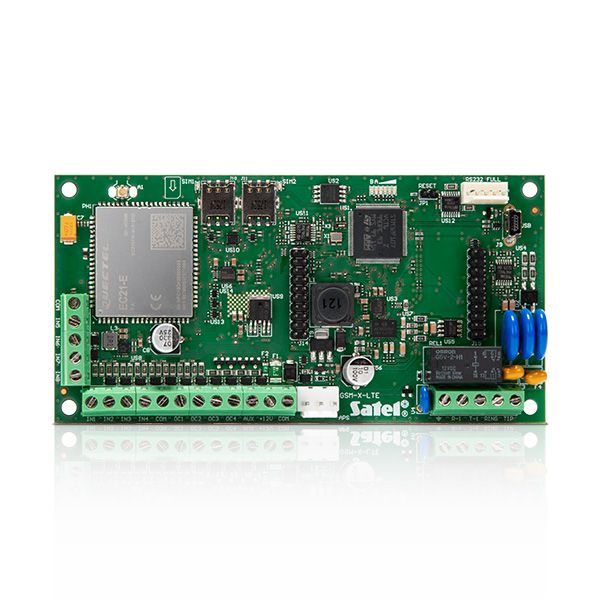

SATEL GSM-X-LTE 4G LTE communication module with mobile app. 8 entrances. 4 outputs

4G LTE communication module with mobile app. 8 entrances. 4 outputs (OPU-2 container B. LTE antenna included)

GSM-X LTE offers extensive communication capabilities and support for multi-carrier communication. The device comes with a GSM phone that supports data transmission with LTE technology *.

The module can be used to implement notifications in alarm systems by connecting to the control panel dialer or to its appropriately configured outputs.

An important feature of the module is its expandability with the GSM-X-ETH Ethernet module, so that two independent paths (LTE* and Ethernet) can be used for reporting. Thanks to the constant monitoring of the status of the connections with the monitoring station and the interoperability of the transmission paths, the rigorous EN 50136 requirements for the so-called Dual Path Reporting are met.

GSM-X LTE allows notifications to be sent to 8 telephone numbers, according to different methods: using voice messages, SMS or PUSH or the CLIP service.

The module offers broad compatibility with the INTEGRA and INTEGRA Plus series control panels. When connected to the control panel's RS-232 interface, it will send reports and notifications (in the case of INTEGRA Plus, the text of the SMS is based directly on the event log ). It also allows remote programming of these control panels from a computer with the DLOADX software and management of the alarm systems using the GUARDX software.

The module can completely replace the analog telephone line, acting as a backup communication path. When the line is not available, the module will transfer voice calls to the GSM network. In the case of PBX systems, it can be used as an additional external line.

GSM-X LTE is equipped with 4 programmable outputs that can be controlled remotely via SMS, CLIP, DTMF, the GX CONTROL mobile application or the GX Soft configuration software. As a result, the module can be used to remotely control the alarm system or other devices.

For programming and configuration, you must use a computer with the GX Soft program installed. The computer connects to the module locally (USB port) or remotely (LTE * / Ethernet **).

Remote updating of the device firmware is possible thanks to compatibility with the UpServ update server.

The built-in phone has two nano-SIM card slots. If communication with the first network fails, the module automatically switches to the other to maintain constant communication.

* LTE / HSPA + / EDGE / GPRS – depending on the capabilities of the GSM network

** when used with GSM-X-ETH
