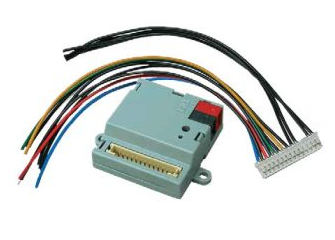

BLUMOTIX BX-TUC2-SCR Interface 4 inputs + Temperature/Humidity Probe + CO2 + KeyStone

The BLUMOTIX BX-TUC2-SCR device is a 4-input KNX button interface designed to transform a traditional push-button panel into a KNX source. This device does not have local control commands and therefore requires the use of a supervisor, such as a touch panel or a mini server, for setup and display operations.

Technical characteristics

The BX-TUC2-SCR is equipped with several probes for environmental monitoring:

Temperature Probe

It provides an accurate reading of the ambient temperature and makes the necessary adjustments for climate control.

Humidity Probe

It measures the percentage values of humidity and the dew point, allowing precise control of the ambient humidity.

CO2 probe

It measures the concentration of CO2 present in the air and, through the management of the thresholds, allows checks to be carried out to improve air quality. All the probes are solid-state, extremely sophisticated and do not require any calibration procedure.

Installation and Dimensions

The probes are small in size and can be installed on the back of the covers of traditional civil series, suitably perforated to allow the correct measurement of temperature, humidity and environmental CO2.

KNX functionality

• 4-input button interface for integration with the KNX system.
• Thermostat and humidity control functions.
• Management of 4 humidity thresholds and 4 dew point thresholds with related alarms.
• Ambient humidity measurement with a 2-byte object.
