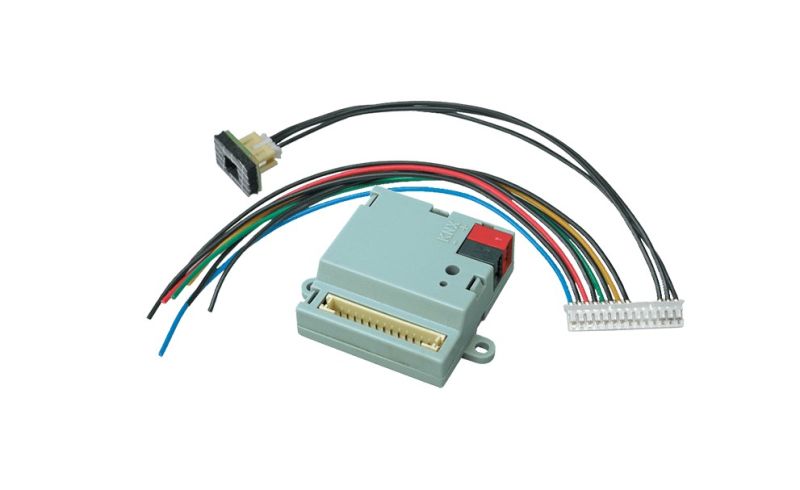

BLUMOTIX BX-TE Interface 4 inputs + Temperature Probe

<p/the BLUMOTIX BX-TE product represents an innovative solution for the integration of thermostat functions and button interfaces into a domestic and industrial automation system.

Key Features

The BX-TE module combines the functionality of a 4-channel button interface with a sophisticated temperature probe, allowing a traditional button to be transformed into a KNX source.

Buttons interface

The device inherits the characteristics of the BX-4XIO model with regard to the button interface part, offering 4 digital inputs that can be configured for various purposes.

Temperature Probe

The integrated solid-state digital temperature probe is extremely accurate, with measurement values between -55 °C and 125 °C and a resolution of 0.5 °C. It does not require any calibration procedure and can be installed on the back of the hole covers, suitably drilled to allow a correct measurement of the ambient temperature.

Thermostat functionality

The thermostat control does not have local control controls or a display for displaying data. The setting and viewing operations are performed through a supervisory device, such as a Blumotix Touch Panel or a Smartphone with the KRIM application.

Configurations and Commands

• Thermostat mode selection (single or dual) with 1-bit object.
• Thermostat on/off command with 1-bit object.
• Summer/winter mode selection with 1-bit object.
• Setpoint temperature setting with 2-Byte object.
• Instantaneous temperature reading with a 2-Byte object.
• 1-bit on/off output and additional output selectable between 3-bit fan control or linear with 1-Byte control.

Installation and Use

The device is designed to be compact and easy to install, allowing it to integrate perfectly with traditional civil series of hole covers. This essential approach is particularly appreciated by users who prefer to avoid filling room walls with controls and displays.
