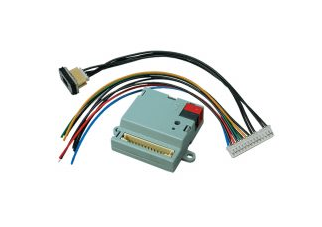

BLUMOTIX BX-TU-SCR Interface 4 inputs + Temperature/Humidity Probe + KeyStone

The BLUMOTIX BX-TU-SCR is a universal button interface that integrates thermostat and humidity control functionality, making it a versatile device for managing climate in different environments.

Key Features

This module combines the functionality of a standard button interface with those of a thermostat and humidity control, thanks to the presence of a digital solid-state temperature and humidity probe.

Button Interface Features

The BX-TU-SCR allows you to convert a traditional button panel into a KNX source, with 4 inputs available for integration into the automation system.

Thermostat functions

The device is equipped with a temperature probe capable of measuring the ambient temperature with extreme precision, covering a range from -40 °C to 125 °C. It does not require any calibration procedure and can be installed on the back of the traditional civil series covers, suitably drilled to allow a correct measurement of the ambient temperature.

Humidity and Dew Temperature Control

In addition to thermostat functions, the BX-TU-SCR includes management of ambient humidity and dew temperature. The humidity probe measures relative humidity between 0% and 100% and allows you to manage 4 humidity thresholds and 4 dew temperature thresholds, each with a relative alarm.

System Requirements

The device does not have local adjustment controls and requires the presence of a supervisory device in the system, such as a Touch Panel or a miniserver, to proceed with the setup and display operations.

Technical Data

• Button interface functions as for BX-4XIO
• Thermostat functions as for BX-TE
• Ambient humidity measurement with a 2-Byte object
• Management of 4 humidity thresholds with relative alarm
• Management of 4 dew temperature thresholds with relative alarm
• Recessed installation
• 4 inputs available

The BX-TU-SCR is designed to be compact and easy to install, making it ideal for a wide range of building automation applications.
