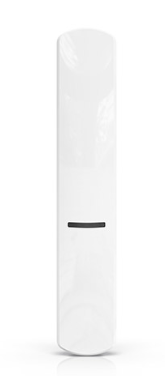

SATEL XD-2L 4-in-1 multi-function detector: magnetic contact, magnetic contact with vibration, vibration, flooding
- MT Code
- SAT_XD-2L
- Manufacturer Code
- XD-2L
- Brand
- SATEL
Description
4-in-1 multi-function detector: magnetic contact, magnetic contact with vibration, vibration, flooding. White colour. Large container. Integrated balancing resistorsNEW XD-2L BR - brown variant XD-2L DG - anthracite variant
Functions:
- magnetic contact
- door/window opening detection, etc.
- input for NC type detectors (e.g. for a second magnetic contact)
- 1 alarm output
- impact detector
- detection of shocks and vibrations that may occur when attempting to force the frame
- input for NC type detectors (e.g. for an external magnetic contact)
- 1 alarm output
- shock detector and magnetic contact
- detection of shocks and vibrations that may occur when attempting to force the frame
- input for NC type detectors (e.g. for a second magnetic contact)
- 1 or 2 alarm outputs
- anti-flooding sensor
- floor flooding detection
- input for the FPX-1 (white), FPX-1 BR (brown) or FPX-1 DG (dark grey) floor probe - optional
- 1 alarm output
- selection of alarm output type (2EOL/NC or NC)
- selectable balancing resistors
- alarm: 1.1 kΩ / 2.2 kΩ / 4.7 kΩ / 5.6 kΩ / 6.8 kΩ
- tamper: 1.1 kΩ / 2.2 kΩ / 4.7 kΩ / 5.6 kΩ
- LED indicator
- remote activation and deactivation of the LED indicator
- supervision of the supply voltage
- tamper protection against opening of the housing
- 2 magnets included in the package (for surface mounting and flush mounting)
Data Sheet
Codice a barre | 8000002634373 |
---|---|
Codice Produttore | XD-2L |
Brand | SATEL |
