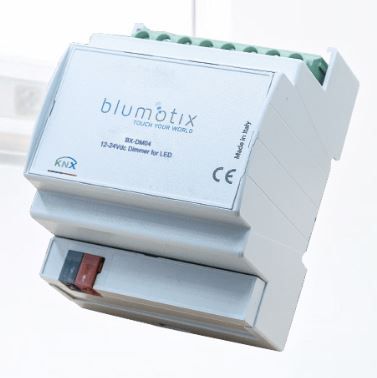

BLUMOTIX BX-DM04 Tensi cost 4-channel Led Dimmer Actuator

The BLUMOTIX BX-DM04 is a 4-channel KNX dimmer actuator designed for the control of white and RGB LED strips with a common anode connection. This device operates at 12 and 24 Volts, making it versatile for different lighting applications.

Technical characteristics

The BX-DM04 adjusts brightness by modulating the output voltage, allowing precise control of the brightness of the LED strips. Each channel can handle a maximum current of 7.8 A, corresponding to a 40-meter RGB LED strip (14.4 W/m at 24 V).

Control functions

The 4 channels of the actuator can be programmed to work independently with white lamps or synchronized to control the colors of an RGB/RGBW lamp. This flexibility allows the device to be adapted to different lighting configurations.

Programming and Configuration

The actuator can be programmed via ETS (Engineering Tool Software) to customize the operating settings. The channels can be configured to deliver specific currents based on the type of lamp installed, with preset values of 350 mA, 700 mA and 1000 mA.

Compatibility and Reliability

The BX-DM04 is designed to ensure high stability and reliability, even with energy efficient light sources. The device stabilizes brightness and solves problems such as flicker, buzz and operational instability.

• 12 and 24 Volt operation
• 4 independent channels for controlling white and RGB LED strips
• Maximum current per channel: 7.8 A
• Compatible with RGB LED strips up to 40 meters (14.4 W/m at 24 V)
• Programming via ETS
• Channel configuration for specific currents (350 mA, 700 mA, 1000 mA)
