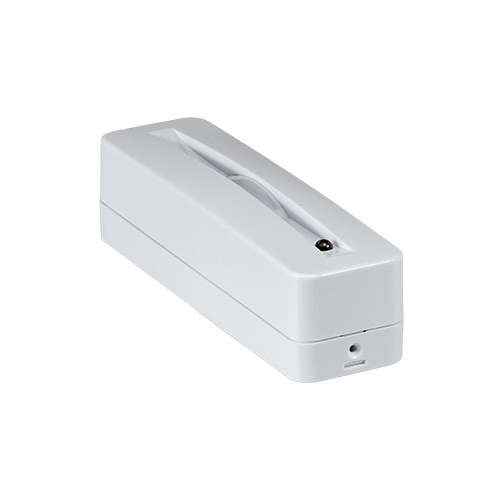

INIM QDT500HB 3m double curtain effect technology detector in white thermoplastic container

3m double curtain effect technology detector in white thermoplastic container. For indoor use. Signal LED. Digital signal analysis. Detection angle 70 degrees. Pulse counting. Temperature compensation. Anti-blinding. Excludable LED signals. Anti-opening protection. Motion/inclination protection. Anti-masking. Excludable findings. Sensitivity adjustable and independent sensors. AND and Smart-OR functions for alarm generation. EN50131-2-4 Grade 2 certification.

The QDT500H motion sensor of the QTech line with cable connection ensures the protection and safety of indoor environments thanks to the dual infrared and microwave technology with a curtain detection area of 3 m and an angle of 70°. Accurate digital analysis, programmable degree of sensitivity, automatic temperature compensation: QDT500H has the most advanced technologies to ensure maximum detection reliability. The “AND” and “Smart-OR” functions provide for the generation of an alarm signal if the movement is detected simultaneously by both sensors or if the prolonged movement is detected even by only one sensor. In installations covering gates or access points such as doors and windows, the anti-masking function protects the device from blinding attempts to which it is exposed, making it particularly suitable for perimeter applications. The QDT500H detector is certified to grade 2 according to EN50131-2-4
