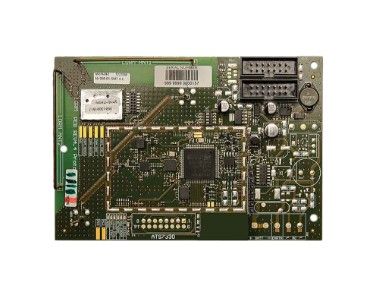

ARITECH INTRUSION ATS1238 32-input 868 MHz Gen2 and 2.4 GHz radio input hub for PirCam system

32-input 868 MHz Gen2 and 2.4 GHz radio input hub for PirCam system. It manages up to 8 PirCams (TX-2344-03-1) included in the 32 inputs. It manages 16 radio controls over 32 inputs. It connects to the MI Bus of the Advisor Advanced control units.

The ATS1238 receiver allows you to add 32 zones via radio to the Advisor Advanced control panel using PirCams and 868 Gen2 radio sensors: for example, PIR, magnetic contacts, etc. Within the 32 zones there can be a maximum of 8 PirCams. The ATS1238 can be installed inside the polycarbonate enclosure of the control unit and connected to the MI bus of the Advisor Advanced control unit itself. It can also be installed remotely at the control panel (up to max. 100 m.) using the ATS7072 module. The ATS1238 makes it possible to minimize the points of absence of a radio signal or blind spots and has a nominal range of 400 m in the open field. If it is necessary to increase this range, an 868 MHz repeater can be used only for 868Gen2 devices.
