ELSNER 30518 30518 Temperature sensors

ELSNER 30518 Product Description

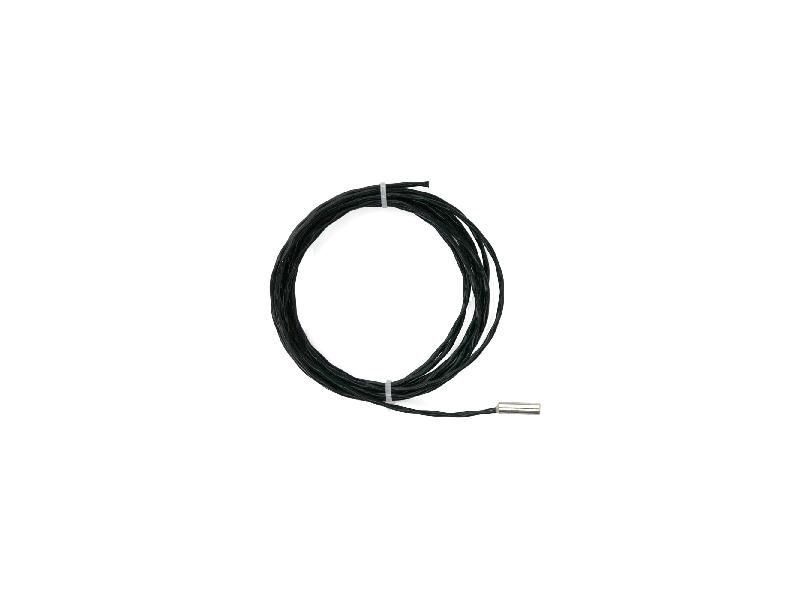

The ELSNER 30518 temperature sensor, called T-130, is designed for precise temperature measurements in both indoor and outdoor environments. This sensor is an integral part of the range of automation and control solutions offered by Elsner Elektronik.

Technical characteristics

The T-130 sensor has a series of features that make it ideal for different applications.

• Measurement Range: The sensor is able to measure temperatures between -35°C and +100°C.
• Accuracy: The accuracy of the sensor varies depending on the temperature: ±1.0°C between -35°C and +25°C, ±1.5°C between -35°C and +80°C and ±2.5°C between -35°C and +100°C.
• Sensor Coating Material: The sensor cover is metal.
• Cable Color: The cable is black.
• Protection Category: The sensor has an IP 43 protection.
• Dimensions: The length of the sensor cover is about 32 mm, the diameter is about 6 mm, and the cable length is about 300 cm.

Applications

The T-130 sensor is compatible with several KNX evaluation units and actuators, including:

• KNX T6-UN-B4 Evaluation Unit: This unit has six inputs for T-100 or T-130 temperature sensors and four analog/digital inputs.
• Corlo Touch KNX 5in (WL) KNX display: Ideal for viewing temperature readings.
• KNX S1R-BA2/4-UP, KNX S1E-BA2/4-UP actuators: Usable to control various devices based on temperature readings.

This temperature sensor is a reliable choice for any automation system that requires accurate and reliable temperature measurements.
