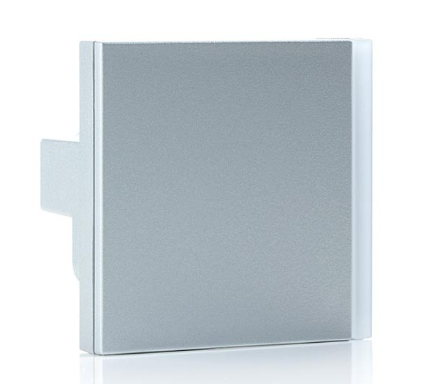

EELECTRON SB40A01KNX-PLCR 3025 — KNX 55X55 CHROMO PLASTIC BUTTON

EELECTRON SB40A01KNX-PLCR Product Description

The KNX® EELECTRON SB40A01KNX-PLCR button is a versatile and highly configurable device, designed to manage a variety of functions within home and commercial automation systems. This 4-channel button can be configured to manage on/off commands, dimmers, control of shutters and blinds, recall of scenes and sequences of objects.

Technical characteristics

The device has the following technical characteristics:

• Dimensions: 55x55 mm, making it compatible with the most common built-in boxes.
• Power supply: Via EIB/KNX bus with a voltage of 21 ÷ 32 Vdc.
• 2-stage thermostat with integrated PI controller for controlling heating, cooling, valves and 2- and 4-pipe fan coils.
• Rear input configurable as digital or analog, allowing the connection of an additional NTC temperature probe (eelectron codes TS01A01ACC, TS01B01ACC, TS01D01ACC).
• Maximum connection cable length for digital contacts: ≤ 10 m (braided cable), and for the temperature probe: ≤ 20 m (braided cable).

Functionality and Configuration

The SB40A01KNX-PLCR button offers a series of features that make it ideal for different applications:

• Management of on/off commands, dimmers and control of shutters and blinds.
• Execution and learning of scenarios and sequences of objects.
• Configuration through the ETS® application program, allowing communication with the KNX Data Secure protocol.
• Capacitive bar with swipe function for implementing programmable KNX functions.
• Freely configurable RGB LED bar for displaying states or other quantities available on the KNX bus.

Applications

This device is particularly suitable for applications in residential and commercial environments, including hotel rooms, where personalization and flexibility are essential.
