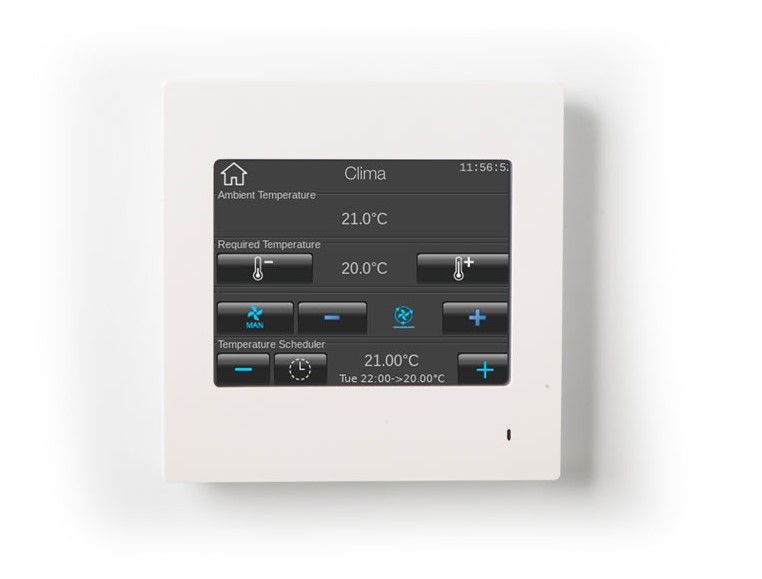

EELECTRON TP35A01KNX-1 3.5 TOUCH PANEL 9025 - WHITE (NEW DESIGN)

Product Description

The EELECTRON TP35A01KNX-1 Touch Panel, part of the Evo21 series, is a KNX control device equipped with a 3.5-inch color display. This touch panel is designed to offer complete and intuitive management of home and commercial automation systems.

Key Features

• 3.5-inch color display for a clear and detailed display of information.
• Control of different functions such as dimming, device status, temperature and humidity values, lighting, shutters and timers.
• Capacitive interface with swipe function for implementing programmable KNX functions.
• Freely configurable RGB LED bar for displaying states or other quantities available on the KNX bus.

Control Functionality

• Integration of a two-stage thermostat with PI controller for controlling heating, cooling equipment, valves and 2- and 4-pipe fan coils.
• Management of on/off commands, dimmers, shutters and blinds, as well as other programmable command and control functions.
• Use of 32 logical blocks to create simple expressions with logical or threshold operators, or complex expressions with conditional algebraic operators.
• Support for predefined algorithms such as proportional temperature and humidity controls or dew point calculation.

Integration and Configuration

• Configurable through the ETS® application program for complete customization of functions.
• Communication with the KNX Data Secure protocol for secure data transmission.
• Integration of “Virtual Pocket Logic” to manage complex scenarios with ease.

Technical Specifications

• Dimensions: 96 x 126 x 36 mm.
• Assembly on a 3-module English, German or Italian box.
• Power supply: 21 ÷ 32 Vdc EIB/KNX bus.
• Digital inputs for potential-free contacts and analog input for temperature probe.
