9153202-E 2N UNI - 2 button

2N 9153202-E Product Description

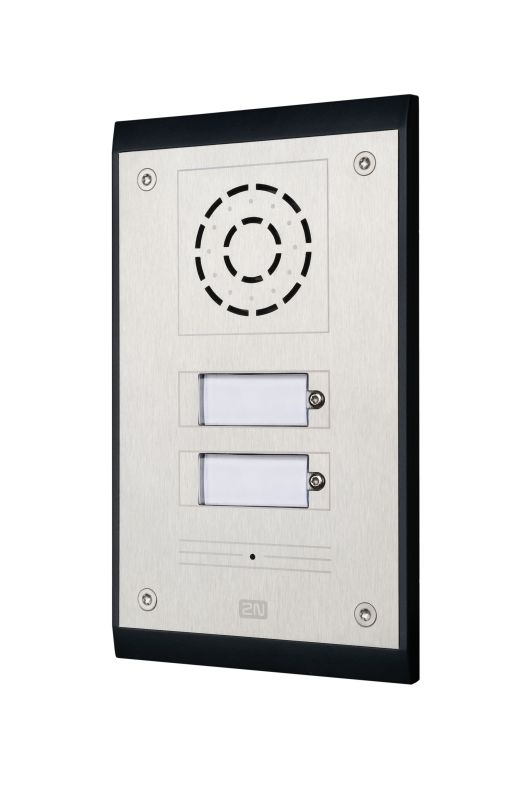

The 2N Analog Uni 2 buttons (code 9153202-E) is a modern intercom system for access control and voice transmission via an analog telephone line. Designed for outdoor and indoor applications, this intercom is ideal for entrances to homes, offices, educational institutions, commercial buildings, residential complexes, hospitals and public spaces.

Key Features

• Robust design with high quality “marine grade” stainless steel front panel.
• Dust and water resistance according to the IP54 standard.
• Easy installation with brick or drywall wall or recessed mounting options without the need for additional accessories.
• Use a wall mounting box (code 9153003) for surface mounting.

Functionality

• 2 fully backlit buttons with easily replaceable name labels.
• Sensitive integrated microphone and powerful speaker with bidirectional acoustic echo cancellation.
• Easy remote programming via voice menu via telephone.
• Detection of all standard tones with automatic call.
• Power supply from the analog telephone line.
• Alarm switch against unauthorized access.

Technical Parameters

• Supply voltage: 9-48 V AC/DC.
• Maximum current: 2A AC/DC
• Backlight voltage: 12 V (maximum 14 V), current consumption up to 5 mA.
• Operating temperature: -25°C to +55°C.
• Operating relative humidity: 10% to 95% (non-condensing).
• Dimensions: 193 x 115 x 39 mm (193 x 115 x 57 mm for wall mounting).
• Product net weight: 500 g, weight of the built-in mounting box: 135 g.

accessories

• Additional 0.5W amplifier for louder volume.
• 12 V/2 A 100-240 V/12 V adapter
• 12 V 230 V/12 V transformer
• Siemens HiPath telephone system adapter.
